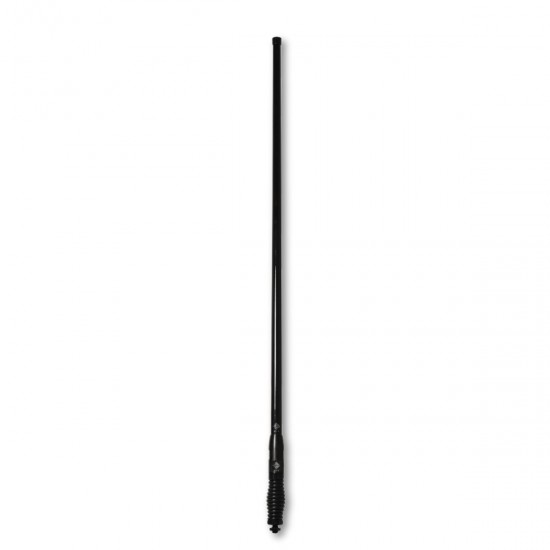

RFI CDQ 5000 Black Rugged 5dbi UHF CB Antenna

Brand: RFI
Product Code: CDQ5000 B
Price:
$242.00 $187.00

RFI's new Q-Fit®  CDQ5000-Black features  the new Q-Fit® removable whip system for fast and simple removal when entering low height areas (e.g. car parks, garages) and when using car wash's.

RFI CDQ5000 UHF CB Antenna with Quick Removable Whip

- Suits all Uniden, GME, Oricom, and other major brand radios
- Heavy duty Black steel spring
- Compact 1010mm height design
- Quick removable Q-Fit
- 5m Coaxial Cable

The CDQ5000 UHF CB antenna employs the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes. This antennas are supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed.

With a heavy duty electro polished stainless steel spring, the CDQ5000 UHF CB antenna can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks.

Features:
-Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability.
-5 dBi (CDQ5000) gain across the full 477 MHz UHF CB band.
-Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security
- Ground Independent

12 Month Warranty

Band 477MHz
Tunable Bandwidth Full. No tuning required
Nominal Gain dBi 5
Tuning Supplied pre-tuned
Power W 25
Cable and Connector 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor
Whip Material PCB radiating element housed in tapered high impact fibreglass
Suggested Installation Bullbar
Radome Diameter mm 22.5 - 15.6
Packaging Clear hanging bag
VSWR <1.5:1
Length mm 1010
Mounting Threaded Stud

UHF CB Antenna TIPS

How does it work?

UHF CBs use Frequency Modulation (FM) to transmit/receive. Since UHF signals generally travel in a straight line, the terrain impacts how well the signal is transmitted or received. For example, UHF CB radios will perform poorly in hilly or forested areas and perform well in flat open countryside. UHF CBs can also access repeater stations that re-transmit the signals on another channel which can provide much further coverage. So invest is a good antenna to compliment your UHF CB radio.

Why is the antenna important?

The antenna is a device for transmitting and/or receiving signals – the eyes and ears of your UHF radio. A good antenna is designed to be “in-tune” to the signal you are seeking – your radio “sees” the signal and you hear a clear conversation. Use a poor antenna or mount the antenna is a bad location, will greatly reduce your range and clarity.

Antenna radiation patterns?

Mobile antenna should radiate in a symmetrical pattern 360° around the antenna. However depending on where you mount your antenna, the way the antenna radiates will be affected. The best location for an antenna is in the middle of you roof however this is generally not practical. Most UHF CB antennas are mounted the front guard or bull bar. In these cases, it is essential that you A) use a ground independent antenna B) mount the antenna away for vertical metal sections like windscreen pillars, other antennas etc. and C) mount the antenna as high as possible.



What is antenna gain?

While the radiation pattern is important, antenna gain increases the antennas performance. As gain is increased, the radiation gets compressed into a thinner pattern and reaches out further to the side. The more gain an antenna has the thinner the pattern becomes and the further the signal can travel or reach. However a thinner radiation pattern may prevent strong signal reception when driving through hills. A summary of the ideal gain for each situation is as follows; low gain antennas (2-4 dBi) are good for hilly terrain but lack range in flat terrain; medium gain antennas (5-7 dBi) are good all round antenna which works well in hilly and flat terrain and high gain antennas (8+ dBi) are good in flat terrain but poor in hilly terrain.

What is a ground independent antenna?

Ground independent antennas are antennas that have been designed to simulate a ground plane which allow it to perform efficiently with a minimum or no ground plane. Hence they are ideal for mounting on bull bars or guards etc.
