ZCG SG700 4GX 4G LTE and 4G 5.1 dBi Antenna

ZCG SG700 4GX 4G LTE and 4G 5.1 dBi Antenna

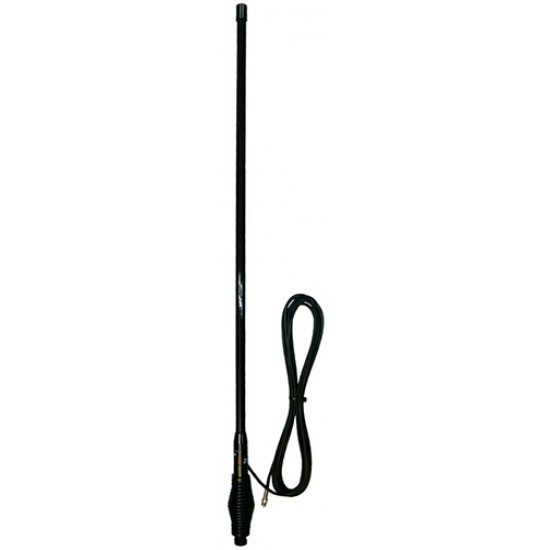

ZCG 4G LTE and 4G super gain collinear, all black, 718-788 MHz & 820-890 MHz,50W, FME female, 5m cable, 5.1 dBi - 1.1m

The SG700-4GX-BLKR all-black super gain 4G LTE and lower 4G/3G antenna is designed for both mobile phone and wireless data improvement in all available networks new 718-788MHz LTE frequency range.

The SG700-4GX-BLKR antenna also functions in the lower 4G/3G range 820-890MHz.

SPECIFICATIONS

FREQUENCY

718-788 MHz - 4G LTE + 820-890 MHz - lower 4G/3G

BANDWIDTH

Full frequency ranges stated

GAIN

5.1dBi

TUNING

4G LTE 718-788MHz: <1.8:1 VSWR, Lower 4G/3G: 3:0:1 VSWR

IMPEDANCE

50 Ohms

H PLANE BEAMWIDTH

H Plane: 360° omnidirectional, E Plane: 22°

MAXIMUM POWER

50 Watts

POLARISATION

Vertical

CONSTRUCTION

Black fibreglass radome, black aluminium ferrule & barrel spring base, black cable & termination

CONNECTOR

FME Female fitted to cable or specify requirements fitted to

DIMENSIONS

Height: 1.1m

WEIGHT

2.2 kg
