- Model: CD61-4552-53

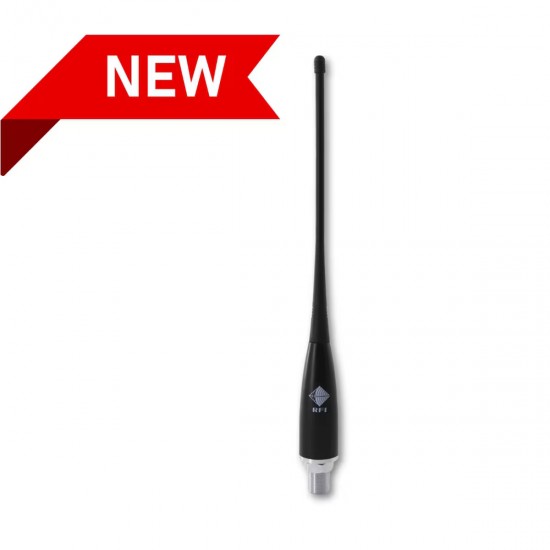

RFI UHF 4dB Broadband Mopole Antenna (450-520 MHz) MBC Base with 5M Cable
The CD61 Series broadband antenna supports multi band radio technology, providing full interoperability among emergency services and commercial radios, regardless of UHF segment used. They provide outstanding coverage of UHF frequencies, in a ready-to-install, no tune design. With an N-Type connector and rugged construction the CD61 N-Type is engineered for the extreme.
The integrated matching circuit is housed in a rugged, impact-resistant base for maximum durability with a fully moulded highly flexible whip. The CD61 is designed to interface with standard brackets through the N-type bulkhead connector, making installation simple and robust for a variety of installations from emergency vehicles to mining trucks.
Features:
- Ground plane independent design allows alternative mounting locations
- Ultra broadband coverage means no tuning in the field
- Highly flexible over-moulded whip
- N Type Base is ideal for demanding and harsh environments
DESIGNED & MANUFACTURED IN AUSTRALIA
| Brand | RFI |
| Frequency MHz | 450-520 |
| Tuned Bandwidth | Full |
| VSWR | <1.5:1 |
| Polarisation | Vertical |
| Power [W] | 25 |
| Cable And Connector | 5m No Connector |
| Whip Length mm | 276.6 |
| Whip Material | Highly flexible over-moulded whip |
| Packaging | Plastic Bag |
| Nominal Gain dBq | 4.0 dBq |
| Antenna Type | Ground Independent, Stud Mounted, Vehicle |
| Antenna Application | Terminal Antenna, Vehicle Antenna |
| Antenna Configuration | SISO |
