RFI TLA4100

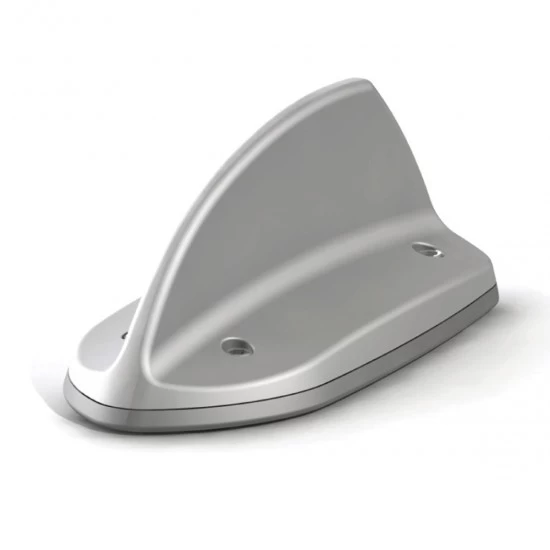

The RFI 5G TLA4100 Antenna is designed specifically for rail, light rail, bus, RV and Caravan applications and other similarly demanding transit or stationary applications.

With a VSWR less than 2:1 covering 698-5800 MHz (off a ground plane) and 2.5:1 (full band on a ground plane), the TLA4100/4200 operates in all cellular bands globally plus the 2.4 & 5.8 GHz ISM bands. In addition the RFI 5G LTE low profile transit antenna TLA4200 incorporates an active GPS antenna for asset tracking and AVL applications.

Designed utilising a high impact, UV stabilised low Flame, Smoke and Toxicity (FST) radome, the TLA4100/4200 is IP68 rated to fully protect against the ingress of dust and water.

Designed to meet the following European Traction Industry Standards:
• NF-F-16-101/102 (materials standard)
• EN50155 (vibration standard)
• EN50124-1 (electrical isolation standard)
• Functions with or without a ground plane* * Nominated gain achieved using a 1m2 ground plane.

The TLA4100 features a N flange connector integrated into its underbelly.
No cable supplied.

Specifications:

Band	698-3800Mhz & 5700-5800MHz
Frequency Range	1710 – 2170, 824 – 960
Power w	50
Nominal Gain Dbi	5 @ 698 – 960MHz / 6 @ 1710 – 2700MHz / 3 @ 2400-2700MHz / 6 @ 3400-3800Mhz / 7 @ 5700-5800MHz
VSWR	<2:1
Termination	Antenna Port: Fixed N-female
Tuned bandwidth	Full. No tuning required
Brand	RFI
Dimensions	21 × 11 × 11 cm
