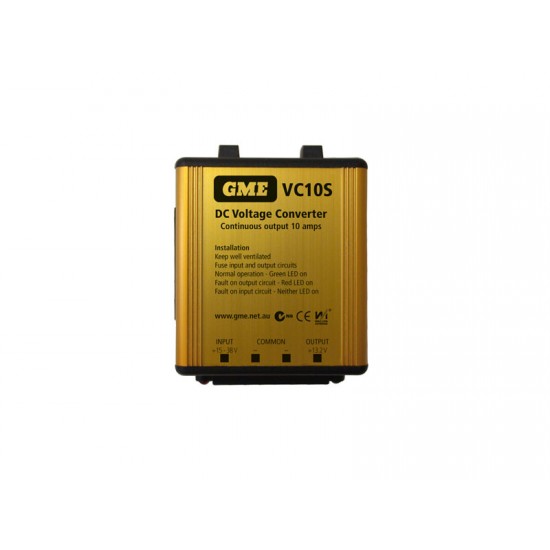

GME VC10S 24 - 12V DC-DC Converter 10A

GME VC10S 24 - 12V DC-DC Converter 10A

10 Amp - 13.8 Volts DC Output

An innovative concept in Voltage Converters, with built-in protection for equipment and vehicle electrics.
Specifications
 Type:     Switch Mode non-isolated
 Input:     15 - 38 Volts DC
 Output:     13.2 Volts DC
 Constant Current:     10 Amps
 Intermittent Current :     14 Amps
 Quiescent Current :     < 15 mA
 Oscillator Frequency :     60 kHz
 Transient Voltage :     Level 3 @± 2 kV
 Protection:     Overload, Reverse Polarity, Short Circuit, Soft Shut Down
 Efficiency (approx) :     89 %
 Connection:     4 x Spade
 Colour:     Black/Gold
 Dimensions (mm) :     74 W x 89 L x 31 H mm
 Weight:     211 grams (incl fixings)
 Warranty:     12 month GME
