- Model: 02635

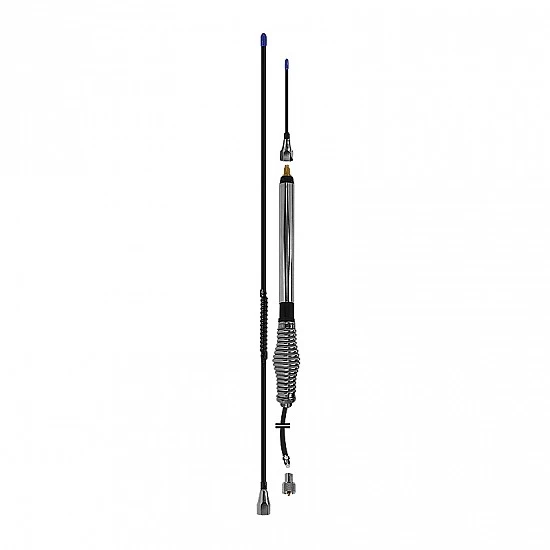

The Benelec 02635 EXPLORER antenna is a ground Independent, 6.5dB Gain, mobile antenna covering the full Australian 80 channel UHF Citizen Band. Its high gain produces exceptional radio range coverage over distances not normally serviced by lower gain antennas. Its ground independence maintains a stable radiation pattern in all mobile mounting applications.
Its robust construction ensures excellent longevity and performance.
Mobile coverage for the UHF Citizen Bands
FEATURES
- Heavy-Duty, Stainless-Steel Body & Spring, Fibreglass Construction
- Pre-Terminated cables, no tools required
- UV Stabilised PVC Heat Shrink for long lasting reliability
- Complete Kit including Stainless Spring & Elevated Feed Base, 6.5dB & 3dB Antennas, RG58 Lead & Plug
- Made using high quality components
TUNING
Factory Tuned, no further tuning required
WARRANTY
3 year
SPECIFICATIONS Frequency 476.42 – 477.40 MHz Bandwidth 470 – 490 MHz Gain 3dB*, 6.5dB Impedance 50 Ω VSWR <1.5:1 Radiation Pattern Omni-directional Polarization Vertical Cable RG58 C/U mil-Spec Benelec 05602ABK Termination FME socket + FMEp–UHFp adaptor 04914 Length 450 / 900 mm Construction Stainless-steel body and spring Net Weight 850 g *dB gain reference is relative to a ¼ wave on a ground plane
