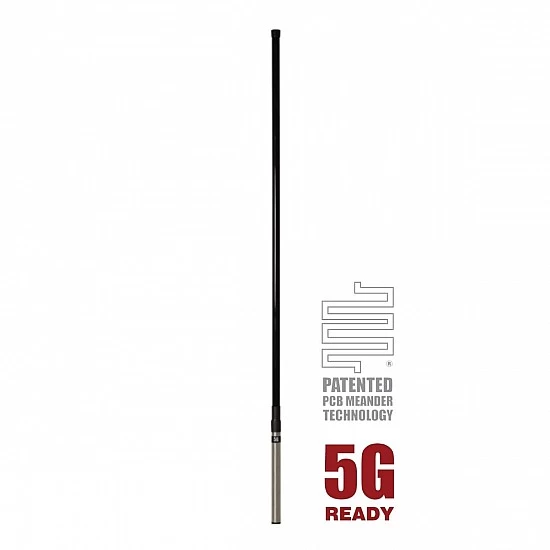

RFI COL8195 6.5dBi Collinear Base Station Mobile Antenna 3G + 4G + 5G

RFI COL8195 6.5dBi Collinear Base Station Mobile Antenna 3G + 4G + 5G
Click for more info
RFI COL8195 6.5dBi Collinear Base Station Mobile Antenna 3G + 4G + 5G
  • Brand: RFI
  • Product Code: COL8195
  • Shipping Cost: $16.00
  • SKU: COL8195
$189.00

RFI COL8195 6.5dBi Collinear Base Station Mobile Antenna 3G + 4G + 5G

The new COL8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz).

It is ideal for use with cellular modems & active repeaters, especially when signal is poor.

The outstanding performance of the COL8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

The COL8100 Series is supplied with a 200mm x 19mm stainless steel mounting tube which is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps.

Key Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.

ColourBlack
Cable TypeRG58
PackagingRetail Hang Sell Pack
Cable And Connector10m of RG58 (9006) low loss cable terminated with SMA male connector
ConnectorSMA(M)
Frequency Range1710-2170, 2300 - 2700, 3400 - 3800, 698-960
Wind Load (Thrust) @ 160km/h N240
Nominal impedance50
Power w10
Nominal Gain Dbi6.5 / 4.5 / 5.5 / 6.5
PolarisationVertical
VSWR<2.5:1
Radome Diameter Mm15.6
Mounting area200 x 19mm stainless steel mounting tube & 2 x S/S hose clamps (supplied)
ConstructionBlack radome, 200 x 19mm stainless steel mounting tube
Tuned bandwidthFull
Horizontal BeamwidthOmni-directional
Frequency MHz698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz
Operating Temperature Range [°C]-45 to +85
IP RatingIP65
BrandRFI
Height [mm]965
