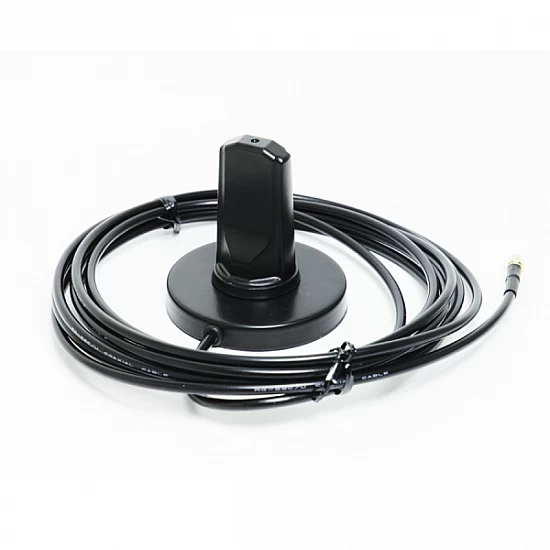

RFI LTE CSM600 Compact Magnetic Antenna
RFI LTE CSM600 compact low-profile omni-directional LTE magnetic antenna provides excellent coverage for mobile and fixed data applications from 698-960MHz and 1710 to 2700MHz.
The RFI LTE CSM600 compact magnetic series antenna is ideal for cellular applications where a removable or temporary antenna is required. The RFI CSM600 antenna uses a microstrip design radiator enclosed in a UV stable ABS radome, mounted on an 84mm magnetic base supplied with 4 meters of RG58C/U cable terminated with an SMA male connector.
It’s a compact low-profile omni-directional LTE antenna that provides excellent coverage for mobile and fixed data applications from 698-960MHz and 1710 to 2700MHz. The CSM600 antenna features and attractive, compact housing which can be used both indoor/outdoor applications and is IP65 rated.
FEATURES:
• Multi-band LTE coverage
• Compact low profile design
• IP65 rating
SPECIFICATIONS:
| Frequency: | 698-960 MHz / 1710-2170 MHz / 2500-2700 MHz |
| Band | LTE |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | 2.5dBi / 3.3dBi / 4.6dBi (peak) |
| Power W | 10 |
| Packaging | Clear Bag |
| VSWR | <2.5:1 |
| Cable Type / Length | 4m RG58 |
| Termination | SMA male connectors |
| Mounting | Magnetic |
| Operating Temperature °C | -40 to +85 |
| Ingress Protection Rating | IP65 |
