GME TX3350 80 Channel UHF CB Radio

Brand: GME Electrophone
Product Code: TX3350
Price:
$533.50 $420.20

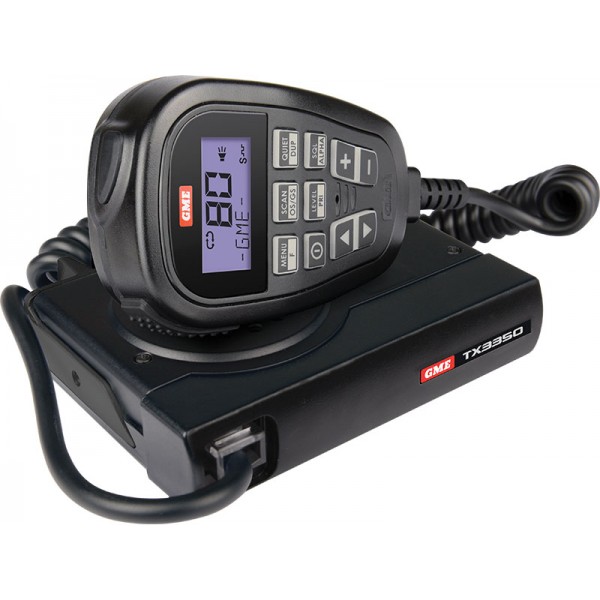

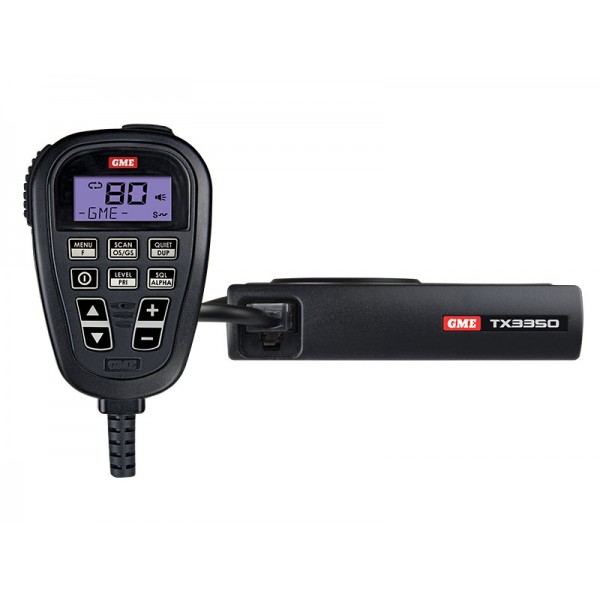

Super Compact UHF CB Radio with LCD SoundPath™ Speaker mic. The TX3350 is an 80 channel, feature packed super compact UHF CB radio with the new SoundPath™ full function LCD Speaker Microphone.

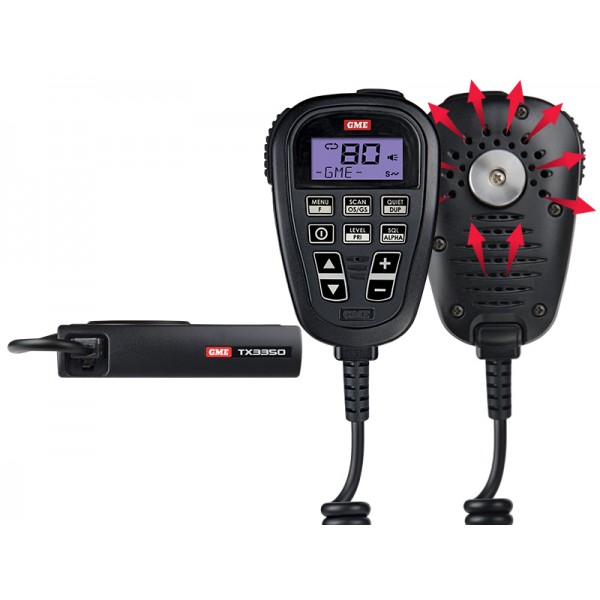

The challenge was to create a unique solution that allowed a full function LCD Microphone that could house a built in speaker with clear audio all within a compact and ergonomic design.  SoundPath™ diverts the audio through a unique convex path around the microphone bollard, whilst maintaining the compact size.

The TX3350 combines the unique combination of space saving benefits of a super compact size radio and full function speaker microphone all in the palm of your hand. The radio can now be discretely installed in almost any location within a vehicle and without the need for extension speakers.

  • Radio unit
  • Mounting cradle
  • 634B LCD Speaker microphone
  • Microphone clip
  • DC lead
  • Screw pack
  • Instruction manual

    The TX3345 is a 80 channel, feature packed super compact UHF CB radio with the same Digital Signal Processing technology found in the TX3100. The remote LCD controller microphone has full spectrum backlighting and tactile button response and can be unobtrusively mounted in modern vehicles. The extremely small radio case allows it be mounted in almost any location. UHF CB Radios for sale Australia wide.

  • Powered by Pure Sound DSP engine
  • Full spectrum backlit LCD microphone with Soundpath speaker
  • User selectable open and group scan
  • User adjustable squelch
  • User selectable duplex channels
  • User selectable priority channel
  • 104 in-built DCS codes
  • 50 in-built CTCSS codes
  • 5 digit selcall with quiet mode
  • Five year warranty
  • Australian design and manufacture
Compliant Specification
Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service.
Frequency Range TX
476.425 – 477.4125 MHz
Number of Channels
80 UHF CB
Channel Spacing
12.5 kHz
Operation Mode
simplex channels 1-80, Semi Duplex channels 1‑8, 41-48
Scanning Speed
20 channels per second
Antenna Impedance
50 Ohms nominal
Nominal Battery Voltage
13.8 volts DC
Operating Voltage Range
10-15 volts DC
Overvoltage Protection
25 volts DC max At 18 volts DC the RF power is reduced, and the words ‘Hi DC’ flash.
Overcurrent Protection
In-line 2A Fuse
Frequency stability
±2.5 PPM
Modulation
FM

TRANSMITTER

RF Output
5.0 watts max
Maximum Deviation
< ± 2.5 kHz at + 20 dB limiting
Transmit Frequency Response
+6 dB per octave, 300 Hz to 3 kHz + 1-3 dB
Current Consumption
1.5 amps with 50 Ohms termination

RECEIVER

Intermediate Frequencies
1st - 21.54, MHz 2nd - 450 kHz
Sensitivity
- 123 dBm for 12 dB SINAD unweighted
Selectivity
- 6 dB at + 3.5 kHz, ‑ 60 dB at ± 12.5 kHz
Intermodulation Immunity
73 dB
Blocking Immunity
100 dB
Spurious Response Immunity
70 dB
Audio Output Power
3 watts average into 4 Ohms
Current consumption
< 180 mA muted 600 mA @ max. A.F output
Receive Frequency
‑6 dB/Octave de‑emphasis, 300 Hz to 3 kHz + 1-3 dB
Conducted Spurious Emission
< - 57 dBm

MECHANICAL SPECIFICATIONS

Dimensions
102 (W) x 87 (D) x 23 (H) mm
Weight
158 grams
