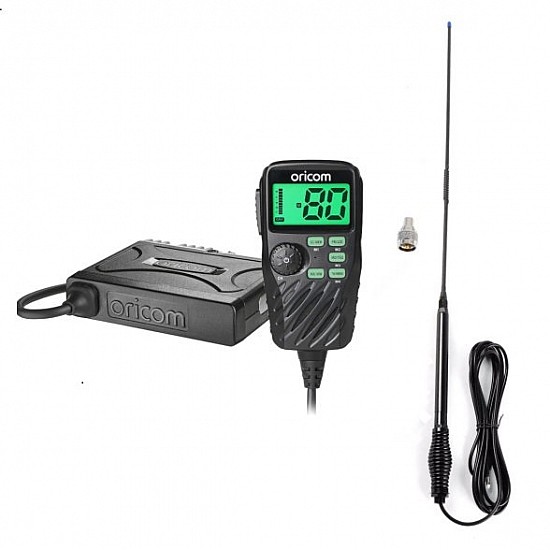

UHF390 5 Watt CB Radio with Controller Speaker Microphone and AT870 6.5dBi Antenna Pack
The Ultimate Value Pack for Modern Vehicles Looking for a sleek, space-saving solution without compromising on performance? This popular bundle offers exceptional value, featuring the UHF390P 5 Watt UHF CB Radio with a Controller Speaker Microphone and the AT870B 6.5dBi UHF CB Antenna.
The UHF390 is designed for modern vehicles, eliminating the need for a bulky head unit. All radio controls are conveniently integrated into the microphone, making it compact and easy to use. The integrated speaker in the controller mic combines with the transceiver’s speaker to provide clear, powerful sound, ensuring excellent volume and audio quality.
Key Features
UHF390 Key Features:
- 5 watt (max TX power)
- Heavy duty controller speaker microphone
- Rugged micro size transceiver
- Large easy to read LCD display
- Automatic Level Control (ALC) for consistent audio levels
- 38 CTCSS and 104 DCS codes
- Duplex (range extender)
- Open/Priority scan
- Priority channel
- Tri colour backlit LCD display (Amber/Red/Green)
- 3.5mm external speaker jack
- Includes 2 Microphone extension cables, one for use with pass through connector (not supplied)
- Designed for Australian conditions. Made in Korea.
- Transceiver Dimensions (27mm x 102mm x 85mm)
AT870 FIBREGLASS BLACK UHF 6.5DB ANTENNA
ANTENNA IS MADE IN AUSTRALIA
• UHF 477MHz CB 6.5DB Gain Antenna 950MM In Length
• 5M RG58 FME Socket Terminated with UHF Adaptor
• Spring Mounted with Elevated Base and 5 Metre Cable
COMPATIBLE WITH ALL UHF CB VEHICLE RADIOS IN AUSTRALIA
Compliance | AS/NZS 4365:2011 |
Number of TX/RX Channels | 80 UHF CB |
Channel Spacing TX/RX | 12.5KHz |
Operating modes | Simplex, Repeater TX offset (+750kHz) |
Selcall ID | 5 Digit with alpha display |
Scanning Speed | 130 msec per channel |
Antenna Impeadance | 50 Ohms |
Operating Volts nominal | 13.8 VDC |
Operating Volts Range | 10 to 15 VDC |
Over Voltage Protection | Diode and voltage regulator |
Over Current Protection | 2 Amp fuse |
Reverse Polarity Protection | Shunt diode |
Frequency Stability | +/- 5ppm |
Transmitter |
|
RF Output Power | Nominal 5watts |
Modulation | F3E (FM) |
Maximum Deviation | 2.5kHz |
Spurious Emissions | < -30 dBm |
TX Audio pre-emphasis | + 6dB/octave from 300Hz to 3kHz |
Current Consumption during TX | 1.6 Amps with 50 Ohm antenna termination |
Reciever |
|
Circuit Type | Dual conversion superheterodyne |
IF Frequencies | 1st IF = 21.4MHz , 2nd IF = 450kHz |
Current Consumption during RX | 200mA |
Sensitivity | < -123dBm at 12dB SINAD |
Sensitivity Receive only channels | < -110dBm for 12dB SINAD |
Selectivity | +/-3.75kHz min @ 3dB to +/-15kHz max @ 40dB |
Intermodulation Immunity | > 70dB |
Spurious Immunity | > 70dB |
Audio Output Power | 3 Watts Maximum |
RX Audio de-emphasis | -6dB/octave 300Hz to 3kHz |
Audio frequency response | 300Hz to 3kHz |
External speaker jacks | One on transceiver one on head unit for optional 8 Ohm mono speaker (3.5mm jack.) |
Transciever |
|
Dimensions | 135 (d) x 110 (w) x 29 (h) mm |
Weight | 420g |
