ZCG ZN3 AM FM 10B HD Black Bull Bar Mount Antenna

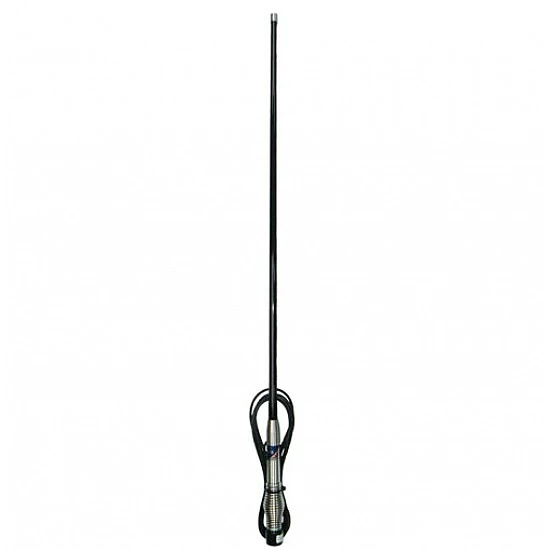

The ZCG ZN3-AM/FM Black radio receive antenna is specifically designed for mounting to the bull bar of a truck, 4WD off-road vehicle or ute.

Designed and manufactured in Australia by ZCG Scalar, the high-quality design is built to last and will deliver the maximum reception range available in a mobile AM/FM car radio antenna. Individually tuned in the factory to cover both AM and FM, radio bands

Key design features are:

  • 1.1m Length
  • Black Radome
  • Stainless Steel Spring
  • The antenna top is detachable for storage when not required.
  • A precision-machined marine-grade aluminium ferrule prevents water and dust ingress giving the antenna a longer service life.
  • The machined aluminium radome cap stops water and dust from ingress into the radome.

The heavy-duty stainless steel barrel spring base bolts into any BRACKET with a minimum 12.7 mm (½") diameter hole.

5 metres of RG58 low-loss stranded cable bottom exits through the mounting base. The cable is not terminated to allow easy installation through vehicle firewalls and dashboards. It is recommended that the cable be cut to the shortest length necessary prior to fitting the car radio connector supplied.

The installation kit supplied with each antenna includes:

  • 3 mm Allen key to remove the antenna top.
  • PVC cap to cover exposed connector on base whenever the antenna top is removed.
  • 6 x 100 mm cable ties, 2 x 200 mm cable ties.

Product Specifications

ConstructionColoured radome, aluminium ferrule, spring base
HEPlaneH Plane: 360° omnidirectional
Impedance50 Ohms
ConnectorEasy fit solderless car radio connector supplied
FrequencyAM radio 530-1600kHz and FM radio 87.5-108.5MHz
GainReceive only
