Magnetic Antenna Base + 4db CD34 RFI Ground Independant Anenna Kit

Magnetic Antenna Base + 4db CD34 RFI Ground Independant Anenna Kit
Click for more info
Magnetic Antenna Base + 4db CD34 RFI Ground Independant Anenna Kit
  • Brand: Axis
  • Product Code: AM101 CD34
  • Shipping Cost: $9.95
$95.00

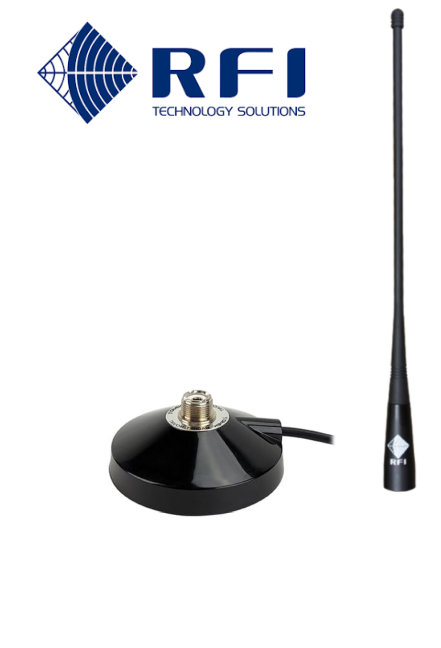

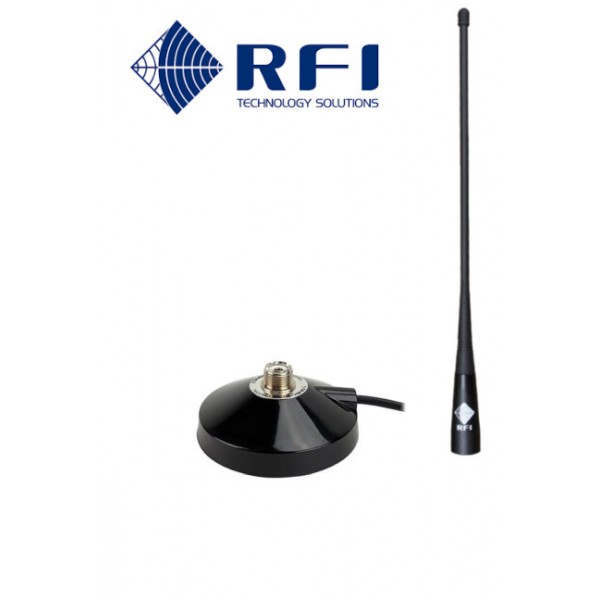

RFI CD34-71-00 4 dBi UHF CB ANTENNA & AXIS MAGNETIC BASE

Ground Independent Mopole Antenna + AXIS SO239 MAGNETIC BASE + CABLE + PL259 CONNECTOR

The CD34 antenna is an end-fed dipole (1/2 wave) with a tuned circuit incorporated in the base and a fully moulded radiating element.

The end result is a tremendously rugged antenna suited for almost any application. Ground plane independent design allows installation in almost any location.


Features

  • Ground plane independent design allows installation in almost any location.
  • Robust UV stable base & flexible whip.
  • 90mm diameter Magnetic base, 4.5M RG58 terminated with FME(F), PL259 Adaptor included.
  • Mag-base height (excluding SO239) 26mm.
Specifications
  • Band : UHF CB 477MHz
  • Tunable Bandwidth : Full, no tuning required
  • Nominal Gain : 4dBi
  • Tuning : Not required, supplied pre-tuned
  • Power : 50 Watts
  • Whip Material : Stainless Steel braid over moulded with UV resistant TPU
  • Whip Length : 315mm
  • VSWR : <1.5:1
