- Model: PRO70

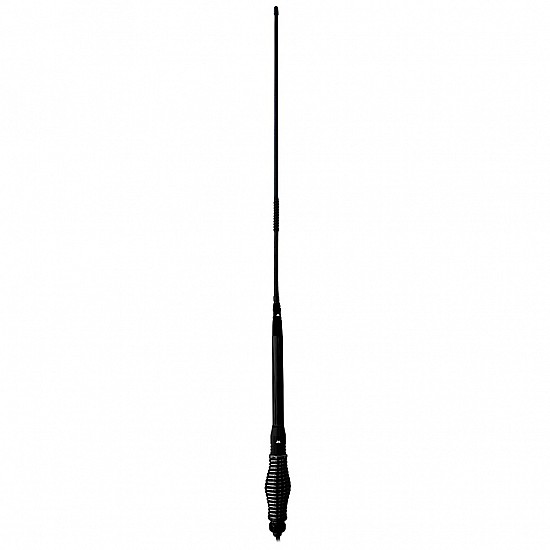

Midland PRO70 - 6.9dBi Elevated Feed UHF Antenna 954mm with LMR240 Cable
The Midland PRO70 is a high-performance 6.9dBi elevated feed UHF antenna engineered for serious 4x4 enthusiasts, recreational tourers, and commercial fleet operators demanding superior communication range.
This professional-grade antenna features 954mm heavy-duty 8mm fiberglass whip with elevated feed design and 45mm heavy-duty barrel spring, delivering exceptional signal gain and durability for demanding Australian conditions. The PRO70 includes 4.5 meters of professional-grade LMR240 low-loss coaxial cable with FME female connector, providing superior performance compared to standard RG58 cable through reduced signal resistance. Pre-tuned for 477MHz Australian UHF CB frequency with ground-independent design, this antenna installs on any vehicle surface without requiring metal ground plane.
The 15-degree vertical beamwidth and 200-watt power handling capability make the PRO70 ideal for extended-range communication across remote outback locations, mining operations, agricultural properties, and commercial applications requiring reliable long-distance UHF connectivity.
Key Features
High-Gain 6.9dBi Performance - Advanced 6.9dBi gain delivers exceptional communication range extending well beyond standard antennas, enabling reliable contact across greater distances in remote outback locations, mining sites, and agricultural operations requiring maximum coverage.
Elevated Feed Design - Specialized elevated feed configuration optimizes radiation pattern for improved signal efficiency and reduced ground losses, providing enhanced performance compared to standard antenna designs for superior transmission and reception capability.
Professional-Grade LMR240 Cable - 4.5-meter LMR240 low-loss coaxial cable significantly reduces signal resistance compared to standard RG58 cable, maximizing power transfer from radio to antenna while minimizing signal degradation for superior communication performance.
Heavy-Duty 8mm Fiberglass Whip - Robust 8mm fiberglass whip construction provides exceptional durability and flexibility, withstanding branch impacts, extreme weather conditions, and harsh Australian outback exposure while maintaining optimal signal transmission characteristics.
45mm Heavy-Duty Barrel Spring - Robust 45mm diameter barrel spring absorbs impacts and vibration from rough terrain, corrugated roads, and demanding off-road conditions, preventing antenna damage during 4x4 adventures and commercial operations.
Ground Independent Design - No ground plane requirement enables installation on fiberglass canopies, aluminum trays, composite body panels, or any vehicle surface without performance degradation, providing flexible mounting options for modern vehicles.
Pre-Tuned 477MHz - Factory-tuned for Australian UHF CB frequency band eliminates complex antenna tuning procedures, ensuring optimal performance across all 80 UHF CB channels immediately upon installation without additional adjustments.
15° Vertical Beamwidth - Narrow 15-degree vertical beamwidth concentrates signal energy toward horizon for maximum long-distance communication range, ideal for flat terrain, highways, and remote locations requiring extended reach.
Technical Specifications
Physical Specifications:
- Antenna Height: 954mm
- Gain: 6.9dBi
- Whip Type: 8mm Heavy-Duty Fiberglass
- Feed Design: Elevated Feed
- Barrel Spring: 45mm Diameter Heavy-Duty
- Cable Length: 4.5 meters
- Coaxial Cable Type: Professional-Grade LMR240 Low-Loss
- Cable Connector: FME (Female)
- Included Adaptor: FME to PL259
Electrical Specifications:
- Frequency: Pre-tuned 477MHz
- VSWR: Maximum 1.5:1
- Impedance: 50 Ohm
- Vertical Beamwidth: 15°
- Maximum Power: 200W
- Ground Plane: Independent (No Ground Plane Required)
Application:
- Serious 4x4 Touring and Off-Road
- Commercial Fleet Vehicles
- Mining and Industrial Applications
- Agricultural Operations
- Recreational 4WD Adventures
- Remote Area Communications
