- Model: PRO7000

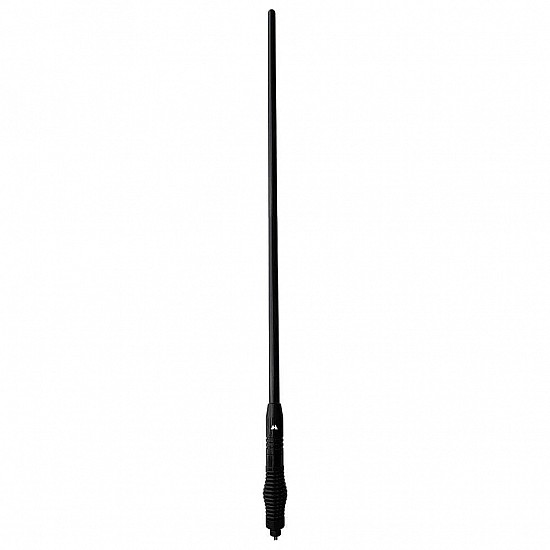

Midland PRO7000 - 6.9dBi Heavy-Duty UHF Radome Antenna 1.2m with LMR240 Cable
The Midland PRO7000 is a premium 6.9dBi UHF radome antenna engineered specifically for maximum distance communication on flat terrain and demanding Australian outback conditions. This professional-grade antenna features 1.19-meter tapered 25mm heavy-duty radome mast with robust 55mm heavy-duty barrel spring, delivering exceptional signal gain and superior durability for serious 4x4 enthusiasts, recreational tourers, and commercial fleet operators. The PRO7000 includes 4.5 meters of professional-grade LMR240 low-loss coaxial cable with FME female connector, providing outstanding performance compared to standard cable alternatives through significantly reduced signal resistance. Pre-tuned for 477MHz Australian UHF CB frequency with ground-independent design, this antenna installs on any vehicle surface without requiring metal ground plane. The 16-degree vertical beamwidth and 200-watt power handling capability make the PRO7000 the ideal choice for extended-range communication across remote outback highways, flat agricultural terrain, mining operations, and commercial applications where maximum distance performance is the priority.
Key Features
Maximum Distance Performance - Advanced 6.9dBi gain combined with optimized 16-degree vertical beamwidth delivers exceptional long-distance communication capability on flat terrain, highways, and open landscapes where maximum range is the priority for remote area operations.
Heavy-Duty 25mm Radome Construction - Robust 25mm tapered fiberglass radome mast with UV-stable construction provides superior durability compared to standard antennas, withstanding extreme Australian sun exposure, branch impacts, and harsh environmental conditions without signal degradation.
Professional-Grade LMR240 Cable - 4.5-meter LMR240 low-loss coaxial cable delivers exceptional performance compared to standard RG58 cable, maximizing power transfer from radio to antenna while minimizing signal degradation for superior transmission and reception quality.
55mm Heavy-Duty Barrel Spring - Extra-robust 55mm diameter barrel spring provides superior impact absorption compared to standard springs, protecting antenna investment during rough terrain, corrugated roads, and demanding off-road conditions.
Ground Independent Design - No ground plane requirement enables installation on fiberglass canopies, aluminum trays, composite body panels, or any vehicle surface without performance degradation, providing maximum flexibility for modern vehicle mounting configurations.
Pre-Tuned 477MHz - Factory-tuned for Australian UHF CB frequency band eliminates complex antenna tuning procedures, ensuring optimal performance across all 80 UHF CB channels immediately upon installation without additional adjustments.
16° Vertical Beamwidth - Optimized 16-degree vertical beamwidth concentrates signal energy toward horizon for maximum long-distance communication on flat terrain, ideal for highway touring, desert crossings, and open agricultural landscapes.
200W Power Handling - Robust construction handles up to 200 watts power capacity, providing compatibility with high-output UHF CB radios and future system upgrades without requiring antenna replacement.
Technical Specifications
Physical Specifications:
- Antenna Height: 1.19m (1190mm)
- Gain: 6.9dBi
- Radome Mast: 25mm Diameter Tapered Heavy-Duty
- Barrel Spring: 55mm Diameter Heavy-Duty
- Cable Length: 4.5 meters
- Coaxial Cable Type: Professional-Grade LMR240 Low-Loss
- Cable Connector: FME (Female)
- Included Adaptor: FME to PL259
Electrical Specifications:
- Frequency: Pre-tuned 477MHz
- VSWR: Maximum 1.5:1
- Impedance: 50 Ohm
- Vertical Beamwidth: 16°
- Maximum Power: 200W
- Ground Plane: Independent (No Ground Plane Required)
Application:
- Serious 4x4 Touring Maximum Distance
- Commercial Fleet Highway Operations
- Mining and Remote Industrial Sites
- Agricultural Open Terrain Applications
- Flat Terrain Maximum Range Communication
- Remote Area Highway Touring
Installation Notes
The Midland PRO7000 installs on any UHF antenna base or bracket with standard thread mounting. Thread the antenna with spring assembly onto the mounting base, tightening firmly by hand without over-torquing the barrel spring connection. Route the 4.5-meter LMR240 cable to the radio location, avoiding sharp bends that could damage the cable. Connect the FME female connector directly to compatible radios, or use the included FME to PL259 adaptor for standard PL259 radio connections. The ground-independent design allows mounting on non-metallic surfaces without performance loss. Ensure the antenna remains clear of overhead obstacles and other antennas to prevent interference. Test VSWR after installation to verify proper connection and tuning. The extra-heavy-duty 55mm barrel spring absorbs severe impacts during off-road driving while maintaining vertical antenna orientation. The 1.19-meter height provides maximum range performance for flat terrain applications while requiring clearance verification for height-restricted parking.
Frequently Asked Questions
What makes the PRO7000 ideal for flat terrain communication?
The PRO7000's 6.9dBi gain and 16-degree vertical beamwidth are specifically optimized for maximum distance communication on flat terrain, highways, and open landscapes. The narrow beamwidth concentrates signal energy toward the horizon rather than skyward, providing exceptional range across flat Australian outback highways, desert crossings, and open agricultural properties.
