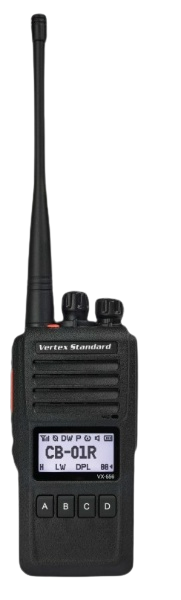

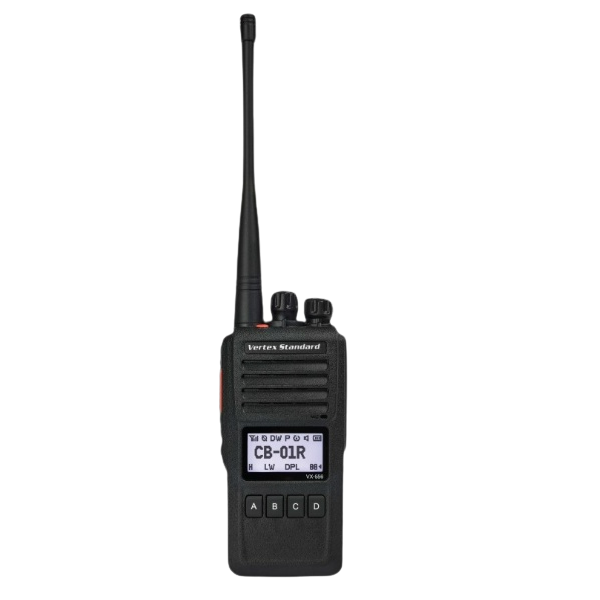

Motorola VX-556 80CH UHF CB Handheld

Motorola VX-556 80CH UHF CB Handheld
Click for more info
Motorola VX-556 80CH UHF CB Handheld
  • Brand: Motorola
  • Product Code: VX556
  • Shipping Cost: $10.00
$430.00

Motorola VX-556 80CH UHF CB Handheld

The VX-556 is a high performance waterproof 5W UHF Handheld Radio designed for heavy duty, commercial and recreational use



The Vertex Standard VX-556 is a dual mode CB and UHF Commercial portable radio. For durable, on-the-job responsiveness, the VX-556 maximises worker uptime with flexible communication options, expanded safety applications and convenient built-in features designed for both heavy duty and recreational use.

The VX-556 comes complete with PMNN4842A 2300 mAh Battery, Antenna, Charger base, Power adaptor and Belt clip.

Features

  • Dual mode: CB and Commercial (UHF 450-520 MHz)
  • 80 channels in UHF CB mode
  • 512 channels / 32 groups in Commercial mode
  • 16 additional Receive only channels
  • 5W Transmit Power
  • 7 programmable keys
  • 7 character alphanumeric display
  • IP 67
  • 1W audio output
  • Whisper mode
  • Compander
  • Clear voice
  • Voice inversion encryption (on/off activation)
  • Minimum volume control
  • Meets MIL-STD 810 specs: C, D, E, F, G, H
  • Channel announce
  • Voice activation (VOX)
  • PC Programming

Scanning

  • Basic Scan
  • Priority Scan
  • Dual Watch
  • Talk Around
  • Scan Set
  • 32 Scan Lists

Package Includes

The VX-556 comes complete with;

  • PMNN4842A 2300 mAh Battery
  • Antenna
  • Charger base
  • Power adaptor
  • Belt clip.

VX-556 Specifications

GENERAL SPECIFICATIONS

:

Frequency Range

UHF CB 476.425 – 477.4125 MHz
UHF 450 – 520 MHz

Number of Channels and Groups

CB – 80 Channels
Commercial – 512 Channels (in 32 groups)
RX Only – 16 Channels

Power Supply Voltage

7.5 VDC ± 10%

Channel Spacing

12.5 / 25 kHz

Battery Life (5-5-90 Duty)

Up to 15 hours with standard 2300 mAh Li-ion battery

IP Rating

IP67

Frequency Stability

±2.5 ppm

Dimension (H x W x D)

135 x 61 x 41 mm

Weight

365 grams with Antenna, Belt Clip, Battery

Sensitivity

0.25 µV Typical at 12dB SINAD

Selectivity

62 dB / 65 dB (12.5 KHz/25 KHz)

Hum and Noise

40 dB

Intermodulation

65 dB

Spurious and Image Rejection

70 dB

Audio Output

1W

TRANSMITTER SPECIFICATIONS

:

Output Power

5W/1W (Selectable by Channel)

Modulation

11K0F3E

Maximum Deviation

± 2.5 kHz

Conducted Spurious Emissions

70 dB Below Carrier

FM Hum and Noise

35 dB

Audio Distortion

3% @ 1 kHz
