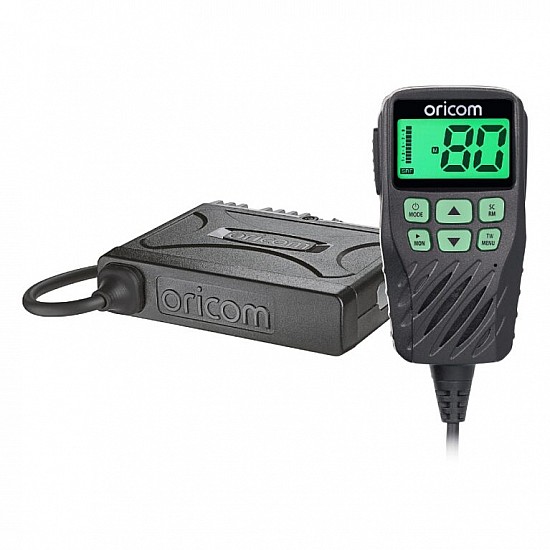

UHF390R 5 Watt CB Radio with Controller Speaker Microphone
The UHF390R now offers an instant replay feature with up to 10 minutes of recording. This compact unit eliminates the need for a separate head unit by integrating all radio controls into the microphone. The microphone also includes a built-in speaker that works alongside the transceiver’s speaker, delivering excellent sound quality and volume. Perfect for modern vehicles with limited space, the compact transceiver can be conveniently hidden under the dashboard or driver’s seat, maximizing both functionality and space efficiency in your vehicle.
Key Features
- 5 watt (max TX power)
- Instant replay (With up to 10 mins of recording)
- Heavy-duty controller speaker microphone
- Rugged micro-sized transceiver
- Large easy-to-read LCD display
- Automatic Level Control (ALC) for consistent audio levels
- 38 CTCSS and 104 DCS codes
- Duplex (range extender)
- Open/Priority scan
- Priority channel
- Tri-colour backlit LCD display (Amber/Red/Green)
- 3.5mm external speaker jack
- Designed for Australian conditions. Made in Korea.
- Includes 2 Microphone extension cables, one for use with pass pass-through connector (not supplied)
- Transceiver Dimensions (27mm x 102mm x 85mm)
| Number of TX/RX Channels | 80 UHF CB |
| Channel Spacing TX/RX | 12.5KHz |
| Operating modes | Simplex, Repeater TX offset (+750kHz) |
| Selcall ID | 5 Digit with alpha display |
| Scanning Speed | 130 msec per channel |
| Antenna Impeadance | 50 Ohms |
| Operating Volts nominal | 13.8 VDC |
| Operating Volts Range | 10 to 15 VDC |
| Over Voltage Protection | Diode and voltage regulator |
| Over Current Protection | 2 Amp fuse |
| Reverse Polarity Protection | Shunt diode |
| Frequency Stability | +/- 5ppm |
Transmitter | |
| RF Output Power | Nominal 5watts |
| Modulation | F3E (FM) |
| Maximum Deviation | 2.5kHz |
| Spurious Emissions | < -30 dBm |
| TX Audio pre-emphasis | + 6dB/octave from 300Hz to 3kHz |
| Current Consumption during TX | 1.6 Amps with 50 Ohm antenna termination |
| Reciever | |
| Circuit Type | Dual conversion superheterodyne |
| IF Frequencies | 1st IF = 21.4MHz , 2nd IF = 450kHz |
| Current Consumption during RX | 200mA |
| Sensitivity | < -123dBm at 12dB SINAD |
| Sensitivity Receive only channels | < -110dBm for 12dB SINAD |
| Selectivity | +/-3.75kHz min @ 3dB to +/-15kHz max @ 40dB |
| Intermodulation Immunity | > 70dB |
| Spurious Immunity | > 70dB |
| Audio Output Power | 3 Watts Maximum |
| RX Audio de-emphasis | -6dB/octave 300Hz to 3kHz |
| Audio frequency response | 300Hz to 3kHz |
| External speaker jacks | One on transceiver one on head unit for optional 8 Ohm mono speaker (3.5mm jack.) |
Transciever | |
| Dimensions | 135 (d) x 110 (w) x 29 (h) mm |
| Weight | 420g |
