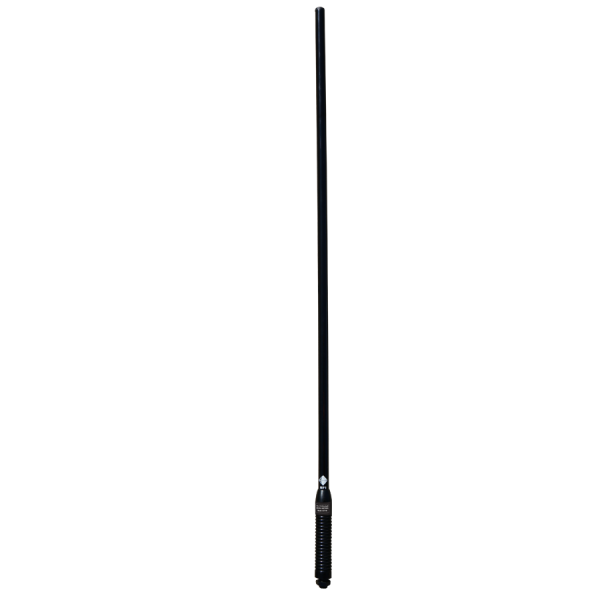

RFI CD8197 7.5dBi 3G+4G+5G Spring Based Mobile Antenna

RFI CD8197 7.5dBi 3G+4G+5G Spring Based Mobile Antenna
Hot-28 %
RFI CD8197 7.5dBi 3G+4G+5G Spring Based Mobile Antenna
  • Brand: RFI
  • Product Code: CD8197B SMA
  • Shipping Cost: $9.95
  • SKU: CD8197B SMA
$249.00
$179.00

The new RFI CD8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz).

It is ideal for use with cellular modems & active repeaters, especially when a signal is poor.

The outstanding performance of the CD8100 Series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

The RFI CD8100 Series includes an integrated spring with threaded stud/nut for easy installation on vehicles.

Key Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.

Packaging
Whip MaterialFibreglass
Cable And Connector5m RG58 (9006) Low Loss Cable Terminated with SMA(M) Connector
Frequency Range1710-2170, 2300 - 2700, 3400 - 3800, 698 - 960
Nominal impedance50
Power w10
Nominal Gain Dbi7.5 / 4.5 / 5.5 / 6.5
PolarisationLinear
VSWR<2.5:1
Tuned bandwidthFull
Horizontal BeamwidthOmni-directional
Frequency MHz698-960 / 1710-2170 / 2300-2700 / 3400-3800
Length [mm]1160
BrandRFI
Weight [kg]0.84
Height [mm]1140
