RFI CDR8194-B Q-FIT 5G LTE
6.5DBI COLLINEAR ANTENNA (698-3800 MHZ)
5M SMA(M) - BLACK 695MM
The new CDR8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz).
It is ideal for use with cellular modems & active repeaters, especially when signal is poor.
The outstanding performance of the CDR8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

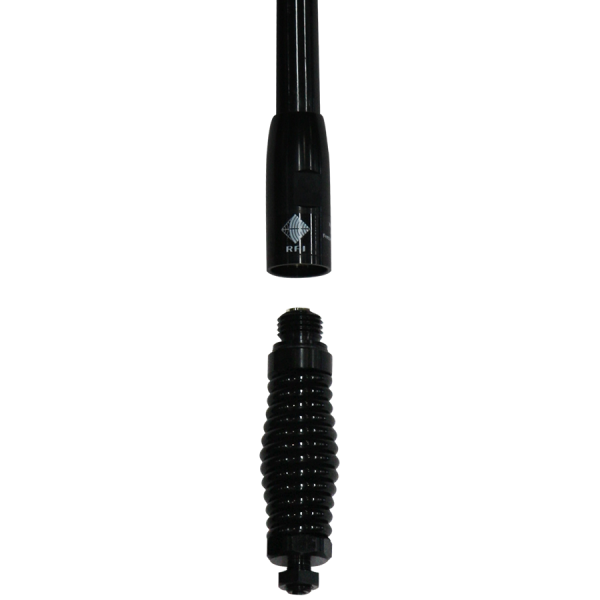

The CDR8100 Series sits neatly in between our lighter duty CD8100 Series & our heavy duty CDQ8100 Series. Includes an integrated spring with threaded stud/nut for easy installation on vehicles . The whip can be removed via the integrated N male connector in the whip and N female connector on the spring ass
KEY FEATURES:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage
- High gain across all bands making it suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks, car washes or for security.
| Packaging | Retail Hang Sell Bag |
| Whip Material | Fibreglass |
| Cable And Connector | 5m RG58 (9006) low loss cable terminated with SMA male connector |
| Frequency Range | 1710 - 2170, 2300 - 2700, 3400 - 3800, 698 - 960 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 5.5 / 4.5 / 5.5 / 6.5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Mounting area | 13-16mm diameter hole |
| Tuned bandwidth | Full |
| Horizontal Beamwidth | Omni-directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 |
| Length [mm] | 695 |
