RFI CSM700 Low Profile 3G+4G+4GX M2M Antenna - 700-2700MHz

RFI CSM700 Low Profile 3G+4G+4GX M2M Antenna - 700-2700MHz
RFI CSM700 Low Profile 3G+4G+4GX M2M Antenna - 700-2700MHz
  • Brand: RFI
  • Product Code: RFI CSM700-5M-SMA
  • Shipping Cost: $9.95
  • SKU: CSM700-5M-SMA
$89.00

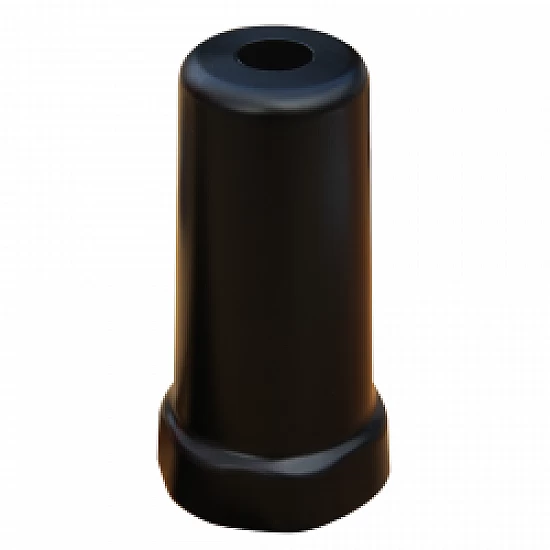

RFI CSM700 Low Profile M2M Antenna fitted with Male SMA connector – 5m Length Cable

The CSM700 is a compact low-profile omnidirectional LTE antenna that provides excellent coverage for mobile and fixed data applications from 698 MHz to 2.7 GHz.

The antenna features an attractive, compact housing which can be used in both indoor and outdoor applications. The CSM700 is fitted with a 16mm stud mount incorporating an integrated rubber O-ring seal, and is IP65 rated.CSM700-5M-SMA

Features:


  • The CSM700 is a compact low-profile omnidirectional LTE antenna that provides excellent coverage for mobile and fixed data applications from 698MHz to 2.7GHz

  • The antenna features an attractive, compact housing which can be used in both indoor and outdoor applications

  • Its robust design and low visual impact make it perfect for fixed and mobile data applications

  • This extremely durable antenna uses a standard 16mm stud mount with an integrated rubber O-ring seal and is dust-tight and waterproof - IP65 rated

  • Suits a wide range of other M2M applications.


With 5m RG58 cable and SMA male connector

Band698-960 MHz / 1710-2170 MHz / 2300-2700 MHz
Tunable BandwidthFull. No tuning required
Nominal Gain dBi2dBi / 3.5 dBi / 5.0 dBi
Power W10
Cable and Connector2m RG58 terminated with SMA (M)
Whip Length mm80mm
Radome Diameter mm50mm
PackagingClear Bag
VSWR2.0:1
Height mm95mm
Mounting16mm Threaded Stud
