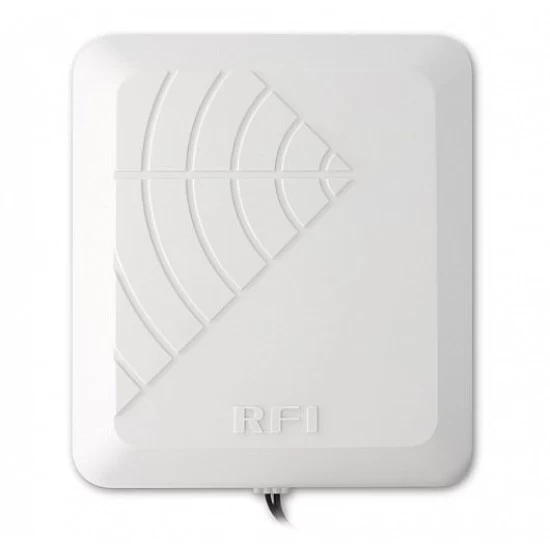

RFI FWA-XPOL-MDP-11 2x2 Mimo Directional Panel Antenna with 10m Cable

RFI FWA-XPOL-MDP-11 2x2 Mimo Directional Panel Antenna with 10m Cable
Click for more info
RFI FWA-XPOL-MDP-11 2x2 Mimo Directional Panel Antenna with 10m Cable
  • Brand: RFI
  • Product Code: FWA-XPOL-MDP-11
  • Shipping Cost: $18.00
$390.00

RFI FWA-XPOL-MDP-11 Directional Panel Antenna, 2×2 MIMO, 698-3800 MHz
2x SMA(M) with 10m Twin HFT195 Cable

RFI FWA-XPOL-MDP-11 2×2 MIMO Directional Panel Antenna is designed from the ground up specifically for Fixed Wireless Access. It consists of cross-polarized dipoles covering 4G/5G and all cellular bands in Australia.

The antenna offers the narrowest azimuth beamwidth in its form factor and has sidelobes typically less than 20dB for 1710-2700 and 3400-3800 MHz.

Features:

  • 2×2 MIMO Antenna
  • Covers 698-960, 1710-2700 and 3400-3800 MHz
  • Narrowest azimuth beamwidth of 26 degree in 1710-2700 and 3400-3800 MHz in the market in a panel antenna form factor for FWA.
  • High gain up to 11 dBi
  • F/B > 20dB
  • Side lobe suppression < -20 dB
  • Consistent broadband performance
  • Pole mount

Electrical Specifications:

  • Frequency Range: 698-960 MHz | 1710-2700 MHz | 3400-3800 MHz
  • Gain (Peak): 8 dBi | 11 dBi | 11 dBi
  • Vertical Beamwidth: 70° | 65° | 60°
  • Azimuth Beamwidth: 70° | 28° |26°
  • VSWR: ≤ 2.0
  • Maximum Power: 50 W
  • Impedance: 50 Ω
  • Polarization: ±45°
  • DC Short: DC Ground

Mechanical Specifications:

  • Series: FWA-XPOL-MDP-11
  • Mounting: Pole Mount
  • Dimensions: 350 x 310 x 115 mm
  • Radome Material: ABS
  • Radome Color: White

Environmental Specifications:

  • Radome Material: ABS
  • Radome Color: White
  • Wind Survival: ≤ 160 km/h (with provided clamp)
  • Temperature Range: -40 to +80°C
  • Environmental Conditions: Outdoor / Indoor
  • Water Ingress Protection: IP56
  • Salt Spray Resistance: MIL-STD 810F/ASTM B117
  • Operating Relative Humidity: Up to 98%
  • Enclosure Flammability Rating: UL 94-HB
  • Impact Resistance: IK08
  • Product Safety & Environmental Compliance: Complies with CE & RoHS standards
