RFI RG213U Coaxial Cable -10m

RFI RG213U Coaxial Cable -10m
RFI RG213U Coaxial Cable -10m
Click for more info
RFI RG213U Coaxial Cable -10m
RFI RG213U Coaxial Cable -10m
RFI RG213U Coaxial Cable -10m
  • Brand: RFI
  • Product Code: RG213u-10
  • Shipping Cost: $18.00
$109.00

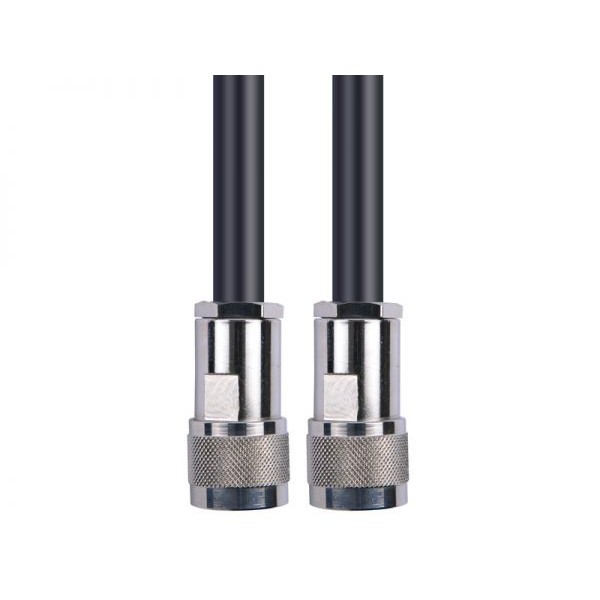

The 10M of RFI MIL-C-17G high quality RG213 coaxial cable fitted with:

1x PL259 Male
1x N’Type Male

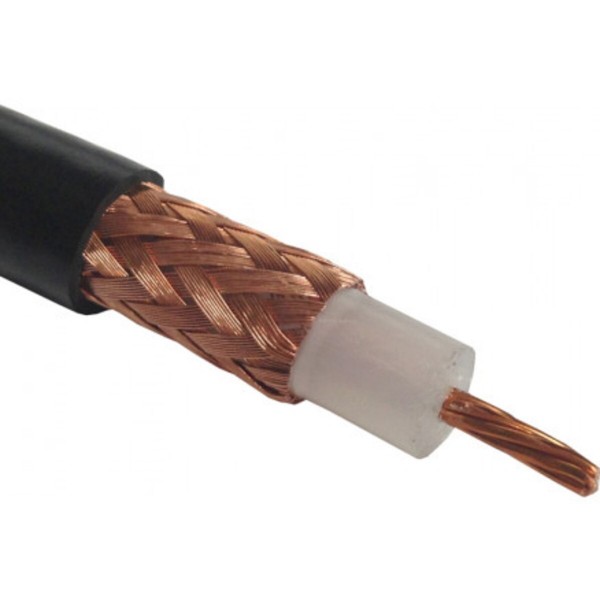

RG213 Coax Cable is ideal for use in a variety of military and commercial applications. This cable features a bare copper centre conductor, PE insulation, a PVC jacket, and a bare copper braid shield.

RG213 coaxial cable is suitable for use in VHF (Very High Frequency) and UHF (Ultra High Frequency) radio communications, data transmission, and broadcast applications. RG213 coax cable is also applicable as an antenna feed cable when low signal loss and high operating voltages are required.

RFI Part Number: 8213

MADE IN TAIWAN.


Another Quality RFI Product.


Specs

  • Conductor Constitution | 13AWG ( 7 / 0.752mm)
  • Conductor Material | Stranded Bare Copper Wires
  • Insulation Material | LDPE
  • Insulation Thickness | 2.50mm
  • Insulation Outer Diameter | 7.25 +/- 0.1mm
  • Insulation Colour | Natural
  • Shield | 24 / 8 / 0.18mm Bare Copper Wires with 95% Coverage (min.)
  • Jacket Material | PVC (RoHS)
  • Jacket Thickness | 1.13mm
  • Jacket Outer Diameter | 10.3 +/- 0.3mm
  • Jacket Colour | Black
  • Markings | M17/31-RG213 MIL-C-17G RFI CAT.No. 8213 50Ω

Performance Properties

  • Impedance | 50+/- 6Ω
  • Capacitance | 101 pF/M (nom.)
  • Velocity of Propagation | 66% (nom.)
