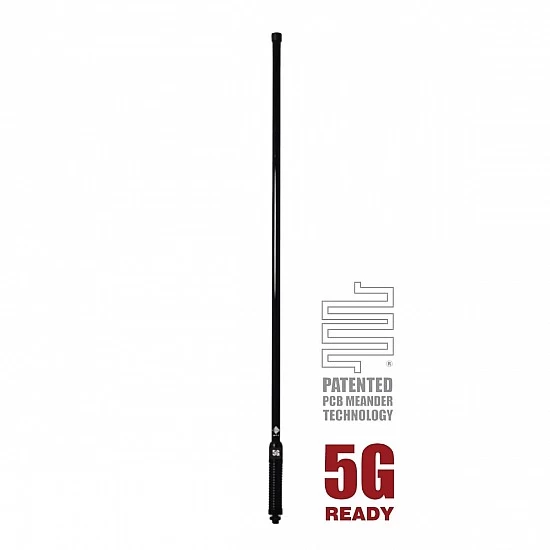

RFI CD8195B 5G LTE Mobile Collinear Antenna

RFI CD8195B 5G LTE Mobile Collinear Antenna
NewHot-29 %
RFI CD8195B 5G LTE Mobile Collinear Antenna
  • Brand: RFI
  • Product Code: CD8195B SMA
  • Shipping Cost: $9.95
$219.00
$155.00

The new CD8195 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz).

It is ideal for use with cellular modems & active repeaters, especially when signal is poor.

The outstanding performance of the CD8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.



The CD8100 Series includes an integrated spring with threaded stud/nut for easy installation on vehicles.


KEY FEATURES:

- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.


ColourBlack
PackagingRetail Hang Sell Bag
Whip MaterialFibreglass
Cable And Connector5m RG58 low loss cable (9006) terminated with SMA male connector
Frequency Range1710-2170, 2300 - 2700, 3400 - 3800, 698 - 960
Nominal impedance50
Power w10
Nominal Gain Dbi6.5 / 4.5 / 5.5 / 6.5
PolarisationVertical
VSWR<2.5:1
Mounting area13-16mm diameter hole
Horizontal BeamwidthOmni-Directional
Frequency MHz698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz
Length [mm]920
Operating Temperature Range [°C]-40 to +85
BrandRFI
