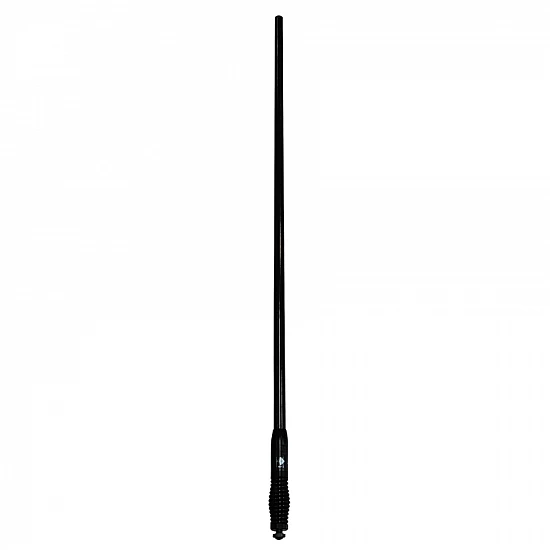

RFI CDQ8195 6.5dBi 3G 4G 5G Cellular Vehicle Antenna with Q-FIT Removable Whip (BLACK)

RFI 97cm CDQ8195 6.5dBi 3G 4G 5G Cellular Vehicle Antenna with Q-FIT Removable Whip (BLACK)

The removable whip latest model of this Australian-made and Australian tough antenna!  This 3G 4G 5G capable bullbar mount antenna offers the highest possible performance levels for 4G and 5G networks including LTE 700MHz networks and the new 5G LTE band (3400-3800 MHz) with true multi-band coverage, while still being both robust and a manageable size.

The Q-Fit removable whip system allows the fast and simple removal of the whip antenna when entering low height areas such as car parks and garages and also when using car washes or for antenna security. The antenna is extremely robust in design and offers the ultimate in performance stability for use in fringe areas or rural locations.

With high gain and consistent performance across the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) and the new 5G LTE band (3400-3800 MHz), this antenna is ideal for use in fringe areas and rural applications. The CDQ8195 provides an impressive 6.5dBi gain on newer 4G and 5G bands, as well as 4.5dBi gain on earlier 3G 4G bands.

The secret to its strong performance lies in the use of two unique PCB radiators. These meander circuits are coupled together to deliver extraordinary consistency in gain and pattern, and coverage across multiple networks - ideal because network operators often switch calls between bands.

Included with this antenna
5m low-loss cable terminated with an attached SMA connector.

Specifications:
Black radome with heavy-duty all black Sring base
Removable whip
Length 970 mm

Nominal gain
6.5dBi (698-960 MHz)
4.5dBi (1710-2170 MHz)
5.5dBi (2300-2700 MHz)
3400-3800 MHz 6.5dBi

13-16mm diameter mount hole required
