Blackhawk Trucker Edge Compact Cellular 6dB Antenna

Blackhawk Trucker Edge Compact Cellular 6dB  Antenna
Click for more info
Blackhawk Trucker Edge Compact Cellular 6dB Antenna
  • Brand: Blackhawk
  • Product Code: CF-ANT6DB
  • Shipping Cost: $12.00
  • SKU: CF-ANT6DB
$169.00

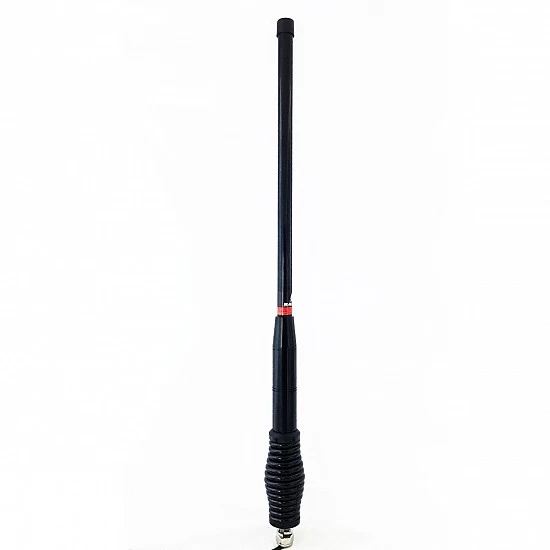

Blackhawk Trucker Edge Compact 6dB 680mm Mobile Phone Spring Base Antenna

The Blackhawk Trucker EDGE antenna compact - we've combined a wideband antenna that can operate on any network in Australia, with a massive spring mount for the roughest of Australian conditions. This antenna will handle pretty much anything you throw at it.

At 68 cm tall, the antenna will sit below the roofline of most vehicles meaning no more worries about underground car parks or other low clearance areas.

The Blackhawk Trucker EDGE Compact antenna is a high-performance antenna incorporating a stacked dipole collinear design to provide high gain.

Combine with a Cel-Fi vehicle booster to never be out of contact when away from home. The antenna has an SMA male connector that will screw directly into your Cel-Fi vehicle booster, providing a full signal inside your car or truck.

The new design includes a smaller barrel which helps reduce weight and minimises vibration and subsequent damage caused by driving on corrugated roads found in remote and harsh environments.

  • 4 dBi gain across lower bands 698-960 MHz
  • 6 dBi gain across upper bands 1710-2170 MHz
  • Can be mounted directly on a bullbar
  • Suitable for all mobile carriers
  • SMA-Male connector
  • Made of ruggedised fibreglass to withstand 210km/h winds
  • 680mm total length

Ideal for all carrier bandsTelstra, Optus,Vodafone 3G'4G.

Combine with a Cei-Fi GO in your vehicle to never be out of contact when away from home.



Specifications:

Frequency Range698-960 MHz / 1710-2170 MHz
Input Impedance50 Ω
Peak Gain4 / 6 dBi
VSWR≤2.0:1 / ≤2.0:1
PolarisationVertical, linear
Horizontal Beamwidth360° (omnidirectional)
Vertical Beamwidth48 / 23°
Maximum Input Power50 W



Input ConnectorSMA Male
Cable4 m PT240 cable
Lightning ProtectionDC Ground
Antenna ConstructionFibreglass radome, heavy duty spring base
MountingL bracket for fender mounting
Dimensions680 x Ø16 mm
Weight1.2 kg
Rated Wind Velocity210 km/h
Operating Temperature-40 to +65°C
