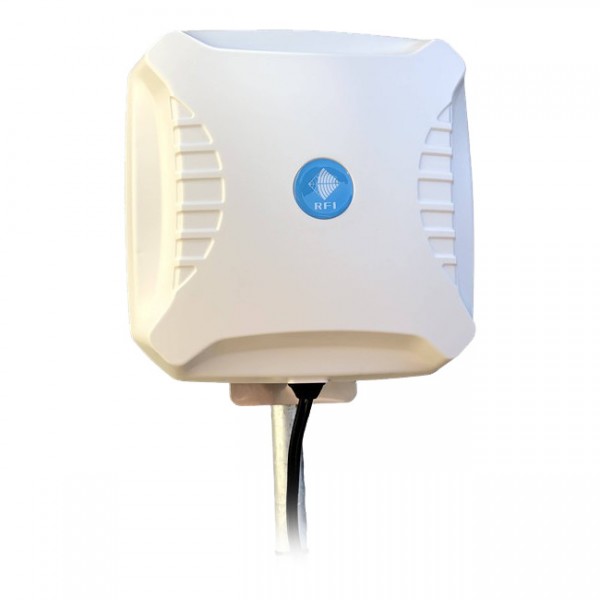

RFI Wide-band MIMO 3G, 4G & 5G Panel Antenna - 700-3800MHz XPOL-002
  • Brand: RFI
  • Product Code: RFI LTE-XPOL-002
  • Shipping Cost: $12.00
  • SKU: RFI LTE-XPOL-002
$295.00

LTE-XPOL-002-5G LTE MIMO DIRECTIONAL 5G PANEL ANTENNA 698-3800MHZ


TheLTE-XPOL-002-5Gis the third generation of this very popular Cross Polarised (LTE-XPOL-002-V2), cellular band, 2x2 MIMO antenna.

The antenna enclosure effectively looks the same as the second generation “V2” but has been completely redesigned on the inside.

We have used advanced metamaterial technology, making useof Artificial Magnetic Conductors (AMC) and new registered/patent pending radiator configuration, which is proving to yield exceptional improvements in bandwidth and gain. Radiation patterns of this antenna are exceptionally well controlled, further adding to the performance of the antenna.

The LTE-XPOL-002-5G antenna includes the newer 3400 - 3800 MHz bands, which were not previously covered by our V2 and is suitable for 2G, 3G, 4G & 5G.

This antenna performs exceptionally well in the followingfrequency bands: 698 – 960MHz, 1700 – 2170MHz, 2300 – 2700MHz & 3400 – 3800MHz.

In addition to the new bands, the gain in the 1700MHz and2.7GHz is around 3dB higher than the “V2” over the same frequency bands!

The weatherproof housing is designed for mast or wall mounting and is supplied with 2 x 10 metres of low loss RG58 cable terminated with SMA male connectors.


FEATURES:

  • 2-3dB higher gain over all the bands compared to “V2”
  • New 3400MHz-3800MHz, 5G band with 11dBi gain
  • Consistent broadband performance
  • X-Polarised 2x2 MIMO antenna
  • Wall or pole mountable
  • Lightweight & rugged
  • Weatherproof & waterproof (IP65)
  • High pattern consistency across bands for 4G/5G carrier aggregation

Specification Sheet

SPECIFICATIONS

  • Nominal Gain dBi
9 dBi @ 698-960MHz , 10 dBi @ 1710-2700MHz , 11 dBi @ 3400-3800MHz
  • Frequency MHz
698-960MHz, 1710-2700 and 3400-3800MHz
  • Tunable Bandwidth
Full. No tuning required
  • VSWR
< 1.5:1 (over 95% of the band)
  • Polarisation
+/- 45
  • Construction
Cream ABS
  • Dimensions mm
H 260, W 260
  • Termination
10m of RG58 fitted with SMA (M) connector per feed
