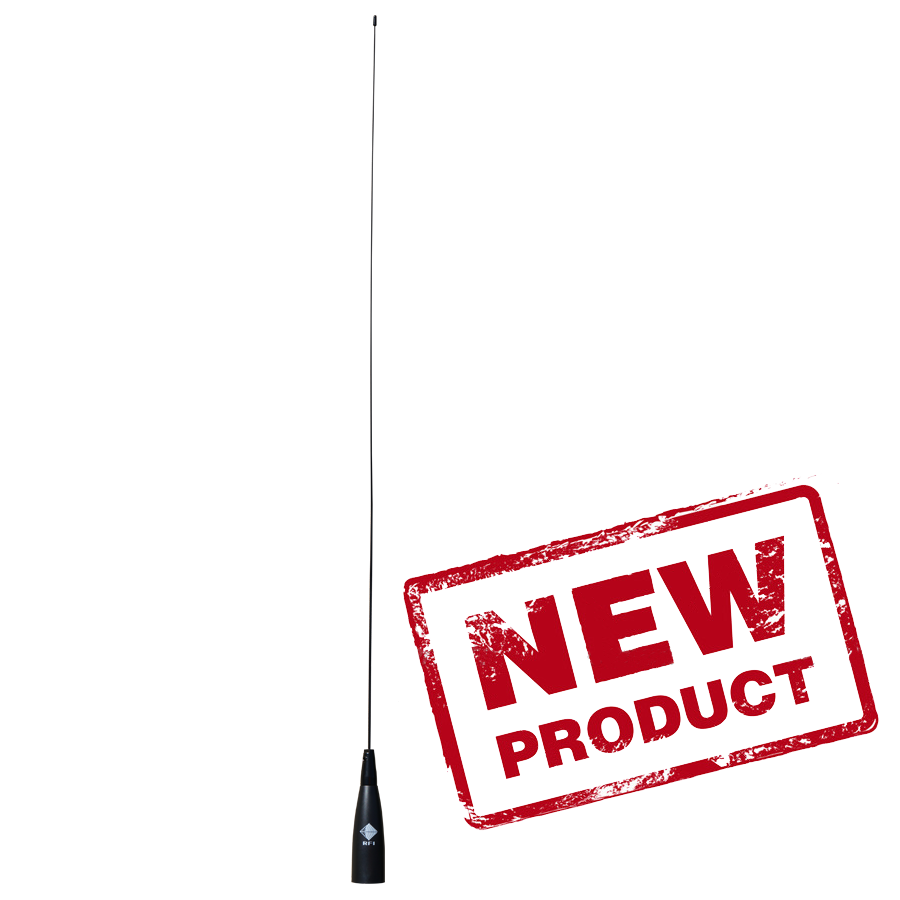

RFI CD19 77-85 VHF Mid Band 1.5dB Broadband Antenna MBC Base 5m Cable

RFI CD19 77-85 VHF Mid Band 1.5dB Broadband Antenna MBC Base 5m Cable
Hot
RFI CD19 77-85 VHF Mid Band 1.5dB Broadband Antenna MBC Base 5m Cable
  • Brand: RFI
  • Product Code: CD19-7785-53
  • Shipping Cost: $9.95
  • SKU: CD19-7785-53
$116.00

The CD19-7785-53 antennas provide great bandwidth coverage without sacrificing antenna performance. Their no-tune design eliminates the need to tune in the field, hence reducing installation costs and complexity while improving overall coverage of the desired frequencies.

The integrated matching circuit is housed in a rugged, impact-resistant base for maximum durability with a tapered black powder coated stainless steel highly flexible whip. The CD19 is designed to interface with standard PL259 (MBC) mobile mounts, and facilitate existing installation upgrades.

Features:

  • CD19-7785-53
    Ground plane independent design allows alternative mounting locations
    Ultra-broadband coverage (70-77 MHz or 77-85 MHz) means no tuning in the field
    Highly flexible tapered black powder coated stainless steel whip
    Base is virtually indestructible
    MBC Base with 5m Cable. No connector supplied.
Nominal Gain dBq1.5
Frequency Range77 - 85
Power w25
PolarisationVertical
VSWR<1.8:1
BrandRFI
