- Brand: GME
- Product Code: XRS370C
- SKU: XRS370C

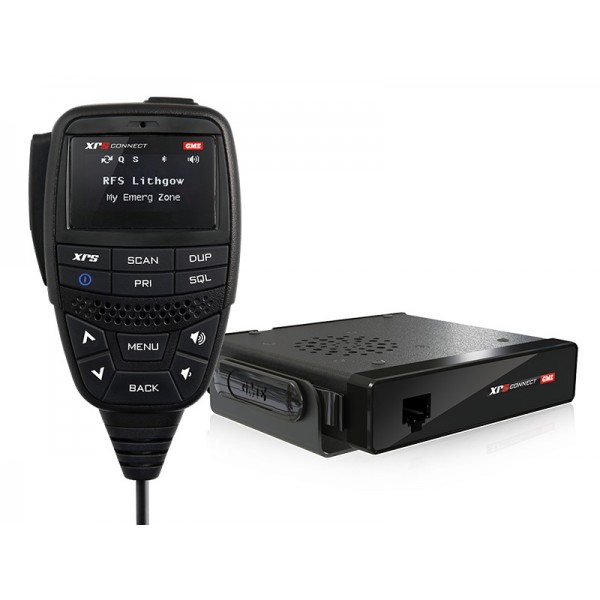

GME XRS370C XRS™ Connect Bluetooth Compact Hideaway UHF CB
The XRS family is a new Australian Made radio platform designed to be smart, adaptable and rugged. Enabled by Bluetooth wireless technology, XRSTM is the first of a new generation of connected UHF radios with unique features never before seen. It is the first ever UHF CB radio with app control and introduces new features such as creating and sharing scan lists and instant access to the entire Australian and New Zealand registered analogue frequency database. Much like a smart device, the XRS family are software upgradable via the app, keeping customers up to date with the latest features and technology.
The new XRS Connect professional grade speaker microphone features a powerful 2 watt speaker, customisable buttons and a high contrast OLED screen guaranteeing crystal clear, anti-glare display.' XRS Connect Location Services, delivers new levels of adaptability. The first ever app designed for a UHF CB radio, it operates much like a smart device and makes it possible to upgrade to new software as it becomes available. Using the app, users can create any combination of up to 400 frequencies in eight scan lists, including frequencies anywhere between 403-520 MHz and store them for simple, easy access. The lists can then be shared with any other XRS Connect radio user.
The GME XRS 370 Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by GME is under license.
Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Product Details
- Bluetooth Smart Connectivity - BT Classic 2.1 and BT Low Energy 4.0
- End user software upgradeable via the app
- Download the XRS Connect App on Google Play or the App Store
- App compatible with iOS9.0, Android 5.0 and above
- Windows app compatible with 7.0 and above available January 2017
- Easy to configure and customise radio via the app
- Create and share personalised scan lists - up to 400 frequencies
- Instant access to over 20,000 receive frequencies
- XRS Connect speaker microphone with OLED display
- Customisable buttons
- 25% faster scan speed at 50 channels per second
- 5 year warranty + 1 additional year for downloading and registering app
In the Box: - GME XRS370C UHF CB radio with Bluetooth Smart Connectivity
- XRS Connect speaker microphone
- Magnetic Microphone clip and radio mounting bracket
- DC power Lead
- Screw pack
- LE040 Mic extension lead
- AD008 Mic extension adaptor kit
- Quick start guide
GME XRS 370 Radio, the gme xrs370, xrs370 GME radio, gme uhf
Product Specifications
GENERAL
Compliant Specification
Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service.
Frequency Range TX
476.425-477.4125 MHz
Number of Channels
80
Channel Spacing
12.5 kHz
Operation Mode
Simplex or half Duplex with repeater talk around.
Scanning Speed
25 ms per channel (40 channels per second)
Antenna Impedance
50 Ohms nominal
Nominal Battery Voltage
12 volts DC
Operating Voltage Range
10-16 volts DC
Battery Polarity
Negative Earth
Standard Test Voltage
13.8 volts DC
Overvoltage Protection
30 volts DC max. At 18 volts DC the RF power is reduced, and the words ‘Hi DC’ flash.
Reverse Voltage Protection
Diode Crowbar
Overcurrent Protection
In-line 2 amp fuse
Operating Temperature
-10°C to 60°C
Zones
8 (50 channels per zone)
Scan lists
3
TRANSMITTER
RF Output
5 watts
Spurious Emission
< - 70 dBc
Frequency Error
< ± 1.5 kHz
Modulation
FM
Maximum Deviation
< ± 2.5 kHz at + 20 dB limiting
Transmit Frequency Response
+6 dB per octave 300 Hz to 3 kHz +1-3 dB
Demodulated Audio Signal to Noise
> 45 dB unweighted
Current Consumption
1.5 amps with 50 Ohms termination
RECEIVER
Intermediate Frequencies
38.85 MHz, 450 kHz
Sensitivity
- 122 dBm for 12 dB SINAD unweighted
Selectivity
- 6 dB at + 3.5 kHz, ‑ 60 dB at ± 12.5 kHz
Intermodulation Immunity
-72 dB
Blocking Immunity
-98 dB
Spurious Response Immunity
70 dB
Audio Output Power
3 watts average into 4 Ohms
Audio Signal to Noise
> 45 dB unweighted
Current consumption
< 175 mA muted 750 mA Full volume
Conducted Spurious Emission
< - 70 dBm
MECHANICAL SPECIFICATIONS
Dimensions
29 (H) x 128 (L) x 117 (D) mm
Weight
450 grams
Antenna
SO239 panel socket
External Speaker
3.5 mm mono jack
Microphone Port
6 Way telephone style with rubber strain relief
OTHER
Display type
OLED
