- Model: XPOL-2-5G
- Shipping Cost: $15.00
- SKU: ANT-PY-00004

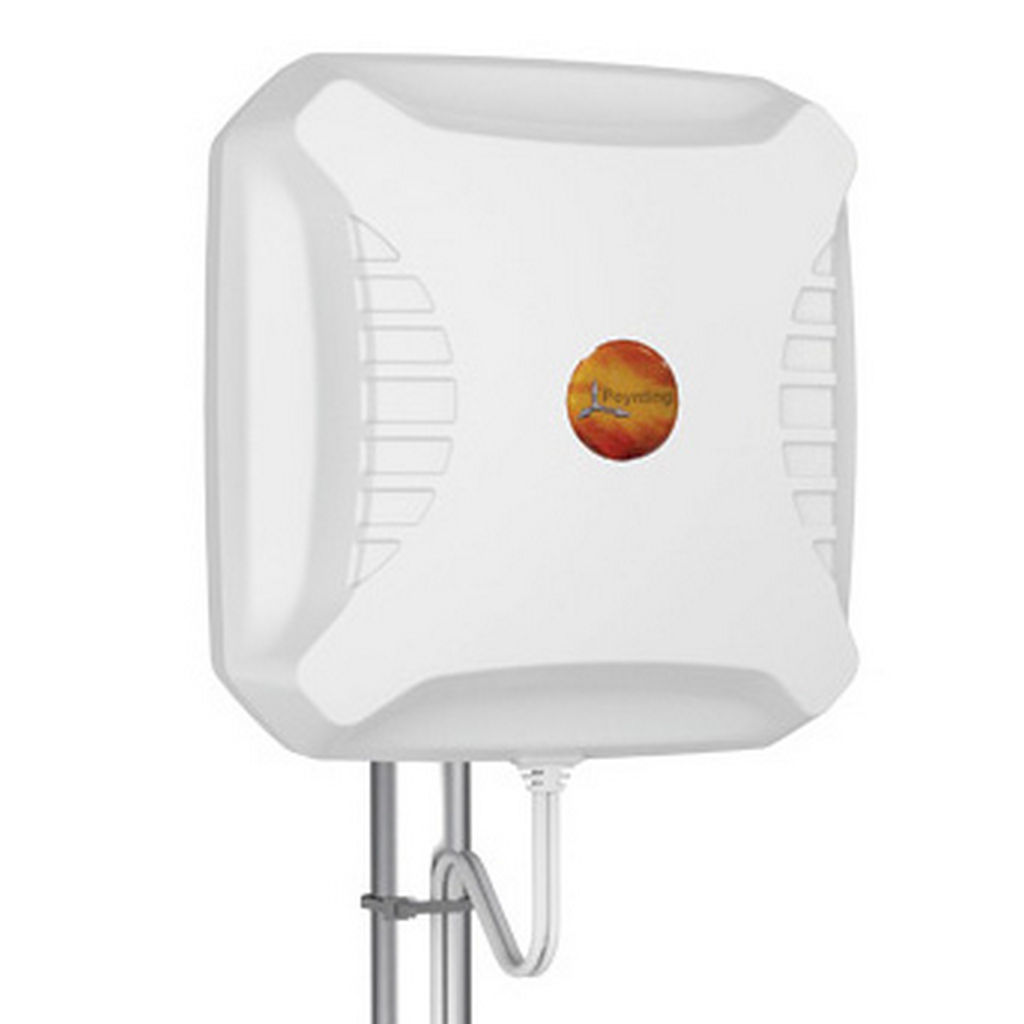

Poynting X-Polarised, High Gain, Uni-Directional 5G/LTE Antenna (2X2 MIMO) 10m Cable
The XPOL-2-5G is POYNTING’s third-generation “V3” version of its popular Cross Polarised (XPOL) 2×2 MIMO antenna. While the enclosure retains the familiar look of the second-generation “V2,” the internal design has been completely re-engineered using advanced metamaterial technology. The incorporation of Artificial Magnetic Conductors (AMC) and a patent-pending radiator configuration significantly enhances bandwidth and gain
Key Features
- New advanced metamaterial technology
- Exceptional performance over the main 4G/5G bands
- High Gain for the antenna size
- Wideband 2x2 MIMO 4G/5G antenna
- Backwards compatible 2G/3G/4G/LTE/5G antenna
- Two cross polarised antennas in one enclosure for optimal LTE performance
- IP65 weather/dust and vandal resistant enclosure.
- Expanded Frequency Coverage: Now includes the 3400 – 4200 MHz bands, in addition to 617 – 960 MHz, 1710 – 2170 MHz, and 2300 – 2700 MHz.
- Enhanced Gain Performance: Delivers up to 3 dB higher gain in the 1700 MHz and 2.7 GHz bands compared to the V2 model.
- Advanced Metamaterial Technology: Uses Artificial Magnetic Conductors (AMC) for improved signal efficiency and performance.
- Optimised Radiation Patterns: Well-controlled radiation patterns enhance overall antenna effectiveness.
- 2×2 MIMO Configuration: Provides better throughput, stability, and signal quality for 2G, 3G, 4G, and 5G networks.
The XPOL-2-5G represents a major upgrade in antenna technology, offering exceptional performance improvements while maintaining its proven reliability. It is an ideal solution for next-generation 5G and LTE deployments.
Ideal Applications
- Outdoor antenna for Fixed Wireless Access (FWA)
- Consumer LTE/5G internet connectivity
- Industrial & Commercial LTE/5G deployments
- Urban and rural household reception enhancement
- Agricultural & Farming LTE/5G data distribution
- Power, Energy & Water telemetry access
- Oil & Gas communication systems
- Municipal & Government systems
- Repeaters & coverage enhancement amplifiers
- TWIN 10M HDF195 Cable / SMA3
| Industry (Application) | Commercial & Industrial Antennas, Farming & Agricultural Antennas, Urban & Rural Cellular Antennas |
|---|---|
| Technology | |
| Cellular Freq. Range | |
| Frequency Band | 617-803MHz, 791-894MHz, 868-915MHz, 880-960MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHz, 3400-4200MHz |
| 5G Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256 |
| LTE/4G Bands | B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B74, B85, B103, B106 |
| Wi-Fi Standard | |
| Gain | |
| Directionality | |
| Mounting Type | |
| Connectors | |
| MIMO | |
| Polarisation | |
| Environmental | |
| LTE Ports |
