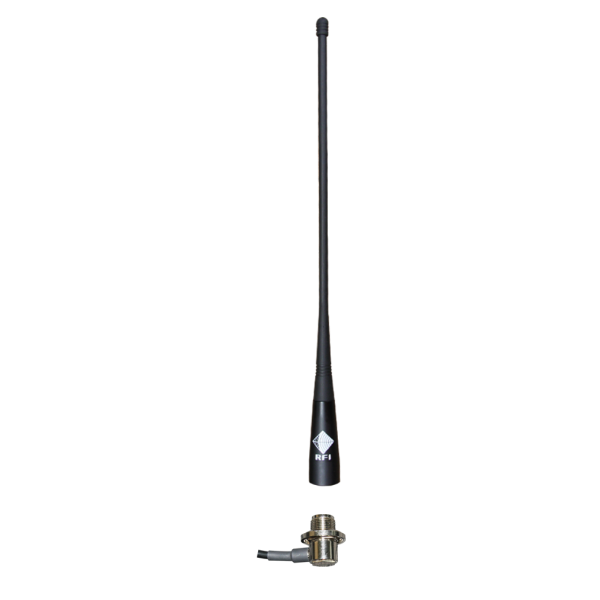

RFI CD34 Rugged UHF CB 4dBi Removable Compact Antenna with Cable SO239 Mount

RFI CD34 Rugged UHF CB 4dBi Removable Compact Antenna with Cable SO239 Mount
RFI CD34 Rugged UHF CB 4dBi Removable Compact Antenna with Cable SO239 Mount
  • Brand: RFI
  • Product Code: CD34-71-53
  • Shipping Cost: $9.00
  • SKU: CD34-71-53
$79.00

The RFI CD34 UHF CB Antenna Series is specifically designed to be used in a variety of mounting positions such as a vehicle mirrors, gutter or roof rack. When mounting in these positions, the CD34 is the ideal substitute for an antenna which would normally need to be mounted in the centre of a metal roof to obtain maximum efficiency.

The antenna is only approx. 300mm long and supplied with MBC/UHF base with removable whip.

Both are supplied with 5 metres low loss cable
Factory terminated with a FME female connector which allows for ease of installation through vehicle firewalls.

Also included is a FME male to UHF male adaptor for connection to all UHF CB radios.

Features:
• Ground plane independent design allows installation in almost any location
• MBC/UHF (CD34-71-53) mount
• Excellent performance - 4.0dB gain
• Robust UV stable base & flexible whip

12 Month Warranty

Band477MHz UHF CB
Tunable BandwidthFull. No tuning required
Nominal Gain dBi4
TuningSupplied pre-tuned
Power W50
Cable and Connector5.0m RG58C/U cable fitted with FME female connector plus supplied with an FME male to UHF male adaptor.
Whip MaterialStainless Steel braid over moulded with UV resistant TPU
Suggested InstallationBracket
Whip Length mm330
VSWR<1.5:1
MountingMBC base which allows whip to be removed
