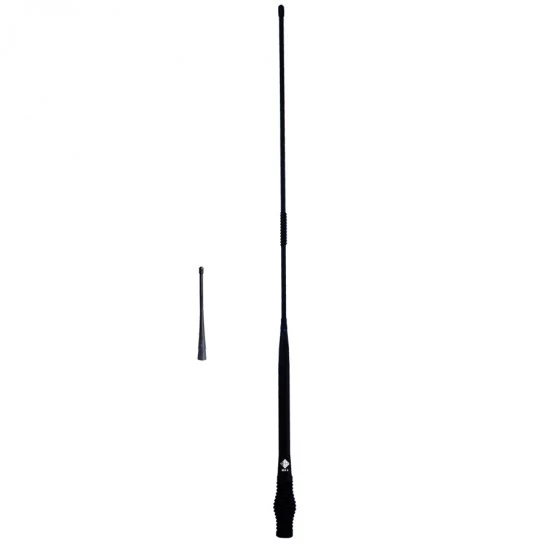

The CD900 Series are high performance elevated feed mobile UHF CB antennas which can be used in virtually any mounting position. When gutter or roof bar mounted, high above a vehicle, CD900 series antennas deliver a full 6.5dB gain.
When the CD963 gets mounted in other positions, such as on a vehicle fender or bull bar, the elevated feed design places a large portion of the antenna above the vehicle cabin, providing good all round performance regardless of mounting position.
Totally ground plane independent
Elevated feed boosts radiating element above obstructions
MSW25 "Phasemaster II" whip section provides unsurpassed performance and strength
Quality construction - Choke assembly is crafted from solid brass
Supplied pre-terminated with FME connector and UHF adaptor
Can be used with a variety of mounts. See accessories section for options.
Band 477 / UHF CB Radio
Tunable Bandwidth Full. No tuning required
Nominal Gain dBq 6.5
Tuning Supplied pre-tuned
Power W 100W
Cable and Connector 5m Cellfoam with FME-101 terminated, UHF adapter supplied.
Mounting Threaded Stud
Whip Material Polyurethene over moulded 17-7PH black chrome plated whip section on black chrome choke
Suggested Installation Bullbar
Antenna Length 900mm
Packaging Clear hanging bag
