RFI UHF CD51 450-520 Mhz MBC Base Monopole Antenna (4.5m Cable) CD51-68-70+Cable

RFI UHF CD51 450-520 Mhz MBC Base Monopole Antenna (4.5m Cable) CD51-68-70+Cable
RFI UHF CD51 450-520 Mhz MBC Base Monopole Antenna (4.5m Cable) CD51-68-70+Cable
  • Brand: RFI
  • Product Code: CD51-68-70+Cable
  • SKU: CD51-68-70 Cable
$90.20

Available Options

When the CD51-68-50 gets mounted on a vehicle gutter or similar position, these UHF MopolesTM provide optimum performance with a largely omnidirectional pattern. Due to the low angle of radiation inherent in the dipole antenna pattern, a 4.0 dB improvement in performance is typical when compared to a 3 wave whip in the centre of a metal roof.

The end fed design of the UHF MopolesTM incorporates a truly unique transformer in the base section. In this patented feed assembly, the dielectric of the coaxial feeder cable is trimmed to a set length and then introduced into the coil in termination. The result is a precisely matched feed which is so consistent that tuning to frequency from a chart becomes a matter of course.

CD51 antennas are fitted with a flexible nylon radome over a copper element - ideal in industrial applications. CD50 antennas have an elegant and durable tapered stainless steel whip section.

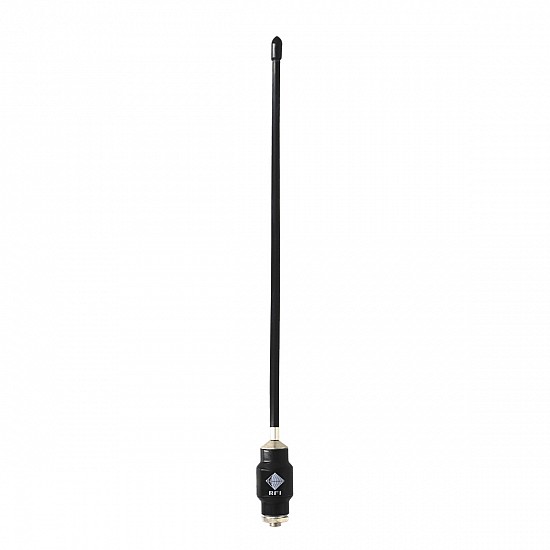

There are two styles of mounting arrangements offered. The CD50-xx-70 and CD51-xx-70 versions mount via a threaded stud and nut assembly. The antenna can be easily terminated, tuned and re-terminated in the field using the instructions supplied. Its patented design allows the coaxial cable to be replaced in the field without specialised tools or soldering.

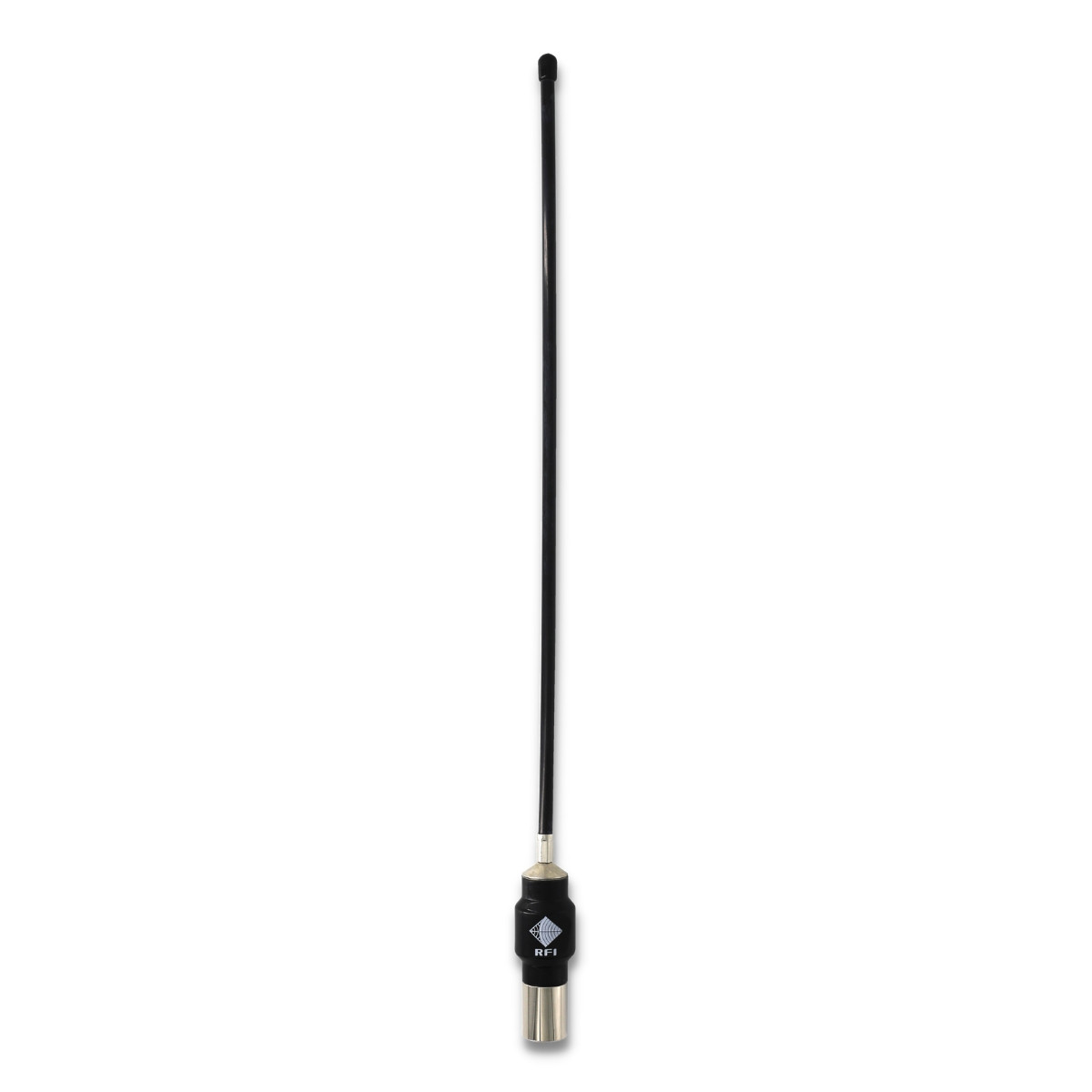

The CD50-xx-50 and CD51-xx-50 versions mate with the MBC coaxial base providing an internal, permanent connection in a completely sealed unit. The MBC base is easy to install and allows the entire antenna to be removed and replaced at will.
