- Model: PRO6000

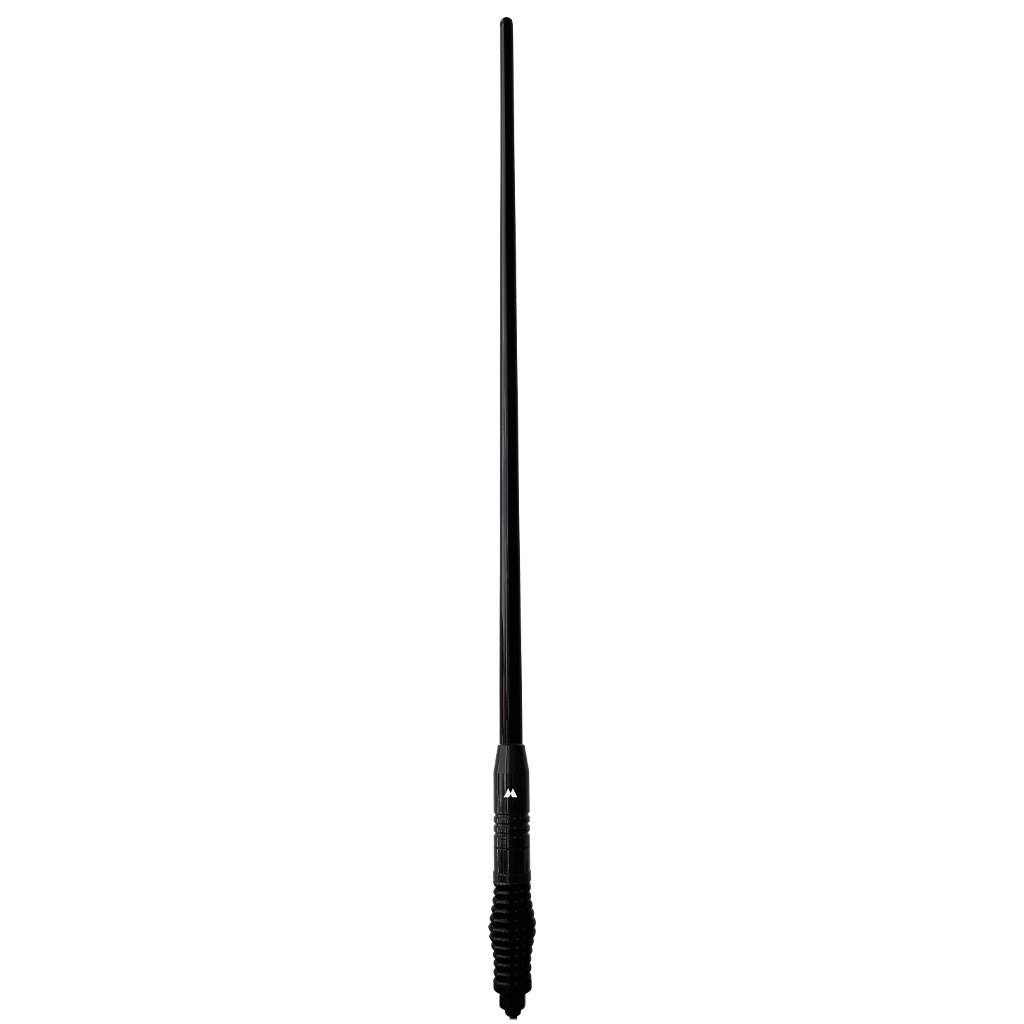

Midland PRO6000 - 6.6dBi Heavy-Duty UHF Radome Antenna 1.0m with LMR240 Cable
The Midland PRO6000 is a high-performance 6.6dBi UHF radome antenna engineered specifically for demanding Australian outback conditions and harsh commercial applications. This professional-grade antenna features 1.026-meter tapered 20mm heavy-duty radome mast with 45mm heavy-duty barrel spring, delivering exceptional signal gain and reception range for 4x4, recreational, and commercial vehicles.
The PRO6000 includes 4.5 meters of professional-grade LMR240 low-loss coaxial cable with FME female connector, reducing signal resistance by half compared to standard RG58 cable for superior performance. Pre-tuned for 477MHz Australian UHF CB frequency with ground-independent design, this antenna installs on any vehicle surface without requiring metal ground plane. The 16-degree vertical beamwidth and 200-watt power handling capability make the PRO6000 ideal for extended-range communication in remote locations, mining operations, agricultural applications, and commercial fleet vehicles requiring reliable long-distance UHF connectivity.
Key Features
High-Gain 6.6dBi Performance - Advanced 6.6dBi gain significantly extends communication range beyond standard antennas, enabling reliable contact across greater distances in remote outback locations, mining sites, and agricultural properties requiring extended coverage areas.
Professional-Grade LMR240 Cable - 4.5-meter LMR240 low-loss coaxial cable reduces signal resistance by half compared to standard RG58 cable, maximizing power transfer from radio to antenna while minimizing signal degradation for superior transmission and reception performance.
Heavy-Duty Radome Construction - 20mm tapered fiberglass radome mast with UV-stable construction withstands extreme Australian sun exposure, impacts from branches, and harsh environmental conditions without signal degradation or structural failure common in standard antennas.
45mm Heavy-Duty Barrel Spring - Robust 45mm diameter barrel spring absorbs impacts and vibration from rough terrain, preventing antenna damage during off-road 4x4 adventures, corrugated roads, and demanding commercial operations.
Ground Independent Design - No ground plane requirement enables installation on fiberglass canopies, aluminum trays, composite body panels, or any vehicle surface without performance degradation, providing flexible mounting options for modern vehicles.
Pre-Tuned 477MHz - Factory-tuned for Australian UHF CB frequency band eliminates complex antenna tuning procedures, ensuring optimal performance across all 80 UHF CB channels immediately upon installation without additional adjustments.
16° Vertical Beamwidth - Narrow 16-degree vertical beamwidth concentrates signal energy toward horizon for maximum long-distance communication range, ideal for flat terrain, highways, and remote locations requiring extended reach.
200W Power Handling - Robust construction handles up to 200 watts power capacity, providing compatibility with high-output UHF CB radios and future system upgrades without antenna replacement requirements.
Technical Specifications
Physical Specifications:
- Antenna Height: 1.026m (1026mm)
- Gain: 6.6dBi
- Radome Mast: 20mm Diameter Tapered Heavy-Duty
- Barrel Spring: 45mm Diameter Heavy-Duty
- Cable Length: 4.5 meters
- Coaxial Cable Type: Professional-Grade LMR240 Low-Loss
- Cable Connector: FME (Female)
- Included Adaptor: FME to PL259
Electrical Specifications:
- Frequency: Pre-tuned 477MHz
- VSWR: Maximum 1.5:1
- Impedance: 50 Ohm
- Vertical Beamwidth: 16°
- Maximum Power: 200W
- Ground Plane: Independent (No Ground Plane Required)
Application:
- 4x4 Touring and Off-Road Vehicles
- Commercial Fleet Vehicles
- Mining and Industrial Applications
- Agricultural Operations
- Recreational 4WD Adventures
- Remote Area Communications
What's Included
- Midland PRO6000 UHF Radome Antenna (1.026m)
- 4.5m Professional-Grade LMR240 Low-Loss Coaxial Cable with FME (F) Connector
- FME to PL259 Adaptor
- Mounting Hardware
