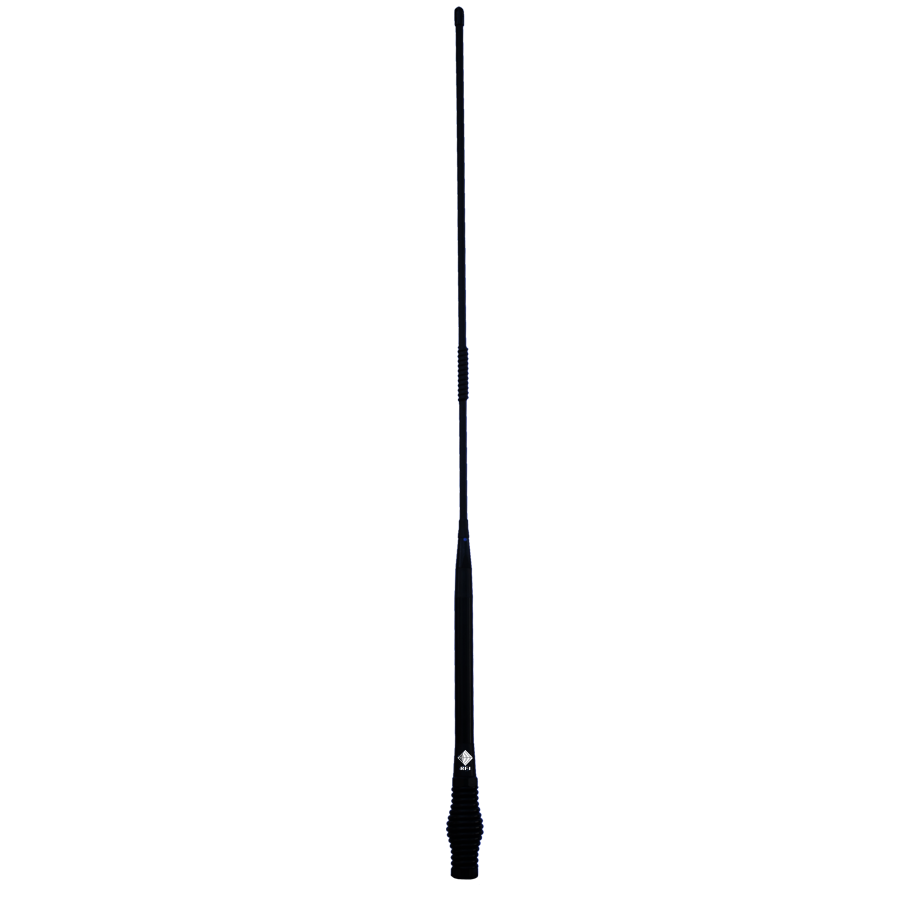

When the RFI CD963-71-75 6.5dBi UHF CB elevated feed antenna design providing good all-round performance regardless of mounting position.
• Totally ground plane independent
• Elevated feed boosts radiating element above obstructions
• FW15-HD heavy-duty fibreglass whip section provides unsurpassed performance and strength
• Quality construction - Choke assembly is crafted from solid brass and available in both chrome and black finishes
• Supplied pre-terminated with FME connector and UHF adaptor
• Can be used with a variety of mounts.
Band 470-490MHz / UHF CB
Tunable Bandwidth Full. No tuning required
Nominal Gain dBi 6.5
Tuning Supplied pre-tuned
Power W 100
Cable and Connector 5m Cellfoam™ with FME-101 terminated, UHF adapter supplied.
Whip Material Fibreglass whip section on black chrome choke & spring
Suggested Installation Bullbar
Whip Length mm 850
Packaging Clear hanging bag
VSWR <1.6:1 @ 470-490MHz & <1.25:1 @ 476-478MHz
Mounting Spring Assembly with Threaded Stud & Stepped Nut
