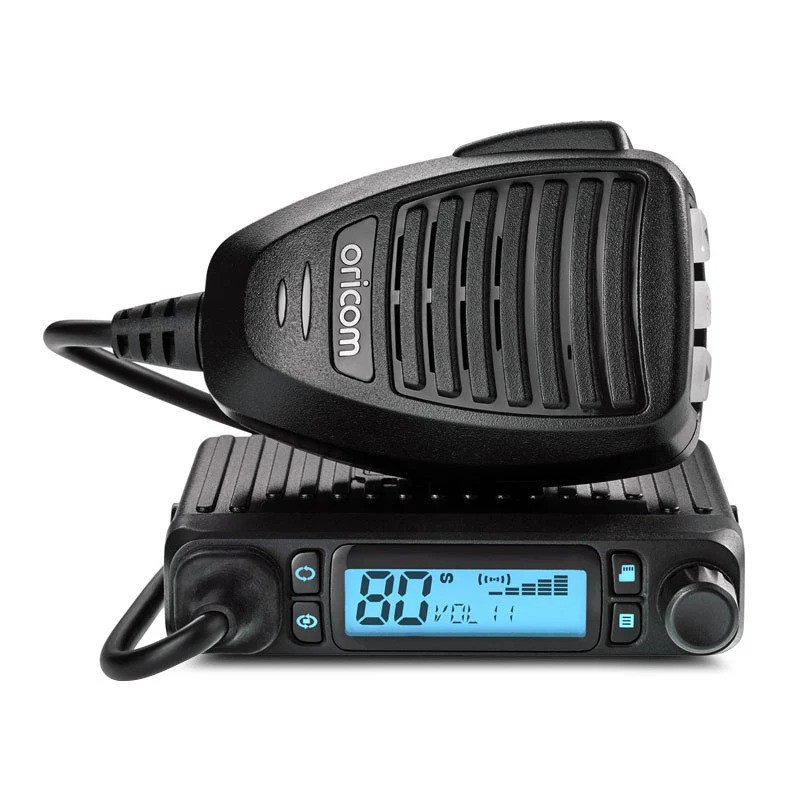

Oricom DTX4300 Micro Size 5 watt UHF CB Radio
Oricom Micro Size 5 watt UHF CB Radio: The First and Best of Their Breed and Have Become an Essential Communication Tool for On and Off the Road
The Oricom DTX4300 Micro Size 5-Watt UHF CB radio is a well-crafted unit, packing a real punch for its ultra-compact size, and is one of the smallest fixed mount UHF CB radios on the Australian market.
The unit has a powerful 5-Watt operation, 80 channels with 38 CTCSS and DCS Codes, 3 memory groups and smart fast scanning, ensuring you’re always connected.
Oricom DTX4300 Features:
- Ultra compact micro size
- 96 colour LCD backlit display
- Flip LCD function
- Over voltage alert function
- Heavy duty microphone
- 3 memory groups
- Smart fast scanning (priority/
- group memory/ group tone scan)
- Back light brightness (4 pre-set levels plus auto)
- Rotary volume/channel and squelch control
- Duplex
- 38 CTCSS & DCS codes
- Diecast metal chassis
- Auto power off (off/1h/2h/4h)
- 3.5mm external jack (for optional external speaker)
- Designed and engineered in Korea
- Requires antenna (not supplied)
MECHANICAL
- Dimensions (H) X (W) X (D): 22.5 X 100 X 76mm
- Weight: 210g transceiver only
Oricom DTX4300 Specifications:
GENERAL
- Compliance: AS/NZS 4365:2011
- Frequency Range: TX/RX 476.425 - 477.4125 MHz
- Number of TX/RX Channels: 80 UHF CB Channels (75 voice)
- Channel Spacing: TX/RX 12.5KHz
- Operating modes: Simplex, Repeater TX offset (+750KHz)
- Scanning Speed: 50 msec per channel
- Antenna Impedance: 50 Ohms
- Operating Volts nominal: 13.8VDC
- Operating Volts Range: 10 to 16VDC
- Over Voltage Protection: Diode and Voltage regulator system
- Over Current Protection: 2 AMP fuse
- Reverse Polarity Protection: Shunt diode
- Frequency stability: +/- 5 ppm
TRANSMITTER
- RF Output Power: 5 watts max
- Modulation: F3E(FM)
- Maximum deviation: 2.5KHz
- Spurious Emissions: < -30dBm
- TX Audio pre-emphasis: +6dB/Octave from 300Hz to 3KHz
- Current consumption: 1.7 AMP with 50 ohm during TX antenna termination
RECEIVER
- Circuit Type: Dual conversion super heterodyne
- Intermediate Frequencies: 1st IF : 21.4MHz, 2nd IF : 450KHz for Main RX
- Maximum usable sensitivity -123dBm for 12dB SINAD un-weighted
- Audio output power: > 2 Watts at 8 ohm load
- RX Audio de-emphasis:+6dB/Octave from 300Hz to 3KHz
- Signal to Noise Ratio: > 40dB
- Conducted Spurious Emission: > -57dBm
