ZCG Scalar SGLDB 6.2dBi Mobile Phone Bullbar Antenna

ZCG Scalar SGLDB 6.2dBi Mobile Phone Bullbar Antenna

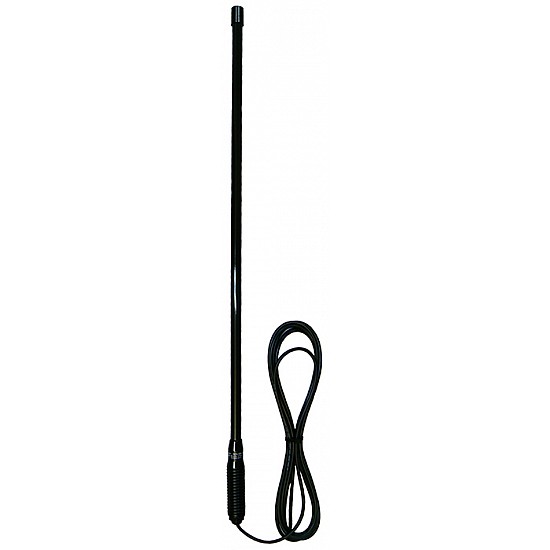

All-black light to medium-duty dualband 4G/3G mobile phone parallel spring antenna, 30W, FME female, 5m cable, 6.2 & 3dBi - 750mm

The SGLDB-BLKR is the lightweight 4G and 3G mobile phone antenna. The SGLDB-BLKR comes standard with a 5.0 metre cable with a FME Female fitted it is also matching in peformance with the SGDB series of antennas with gain performance of 6.2dBi at 825-960MHz and 3dBi at 1710-2190MHz and a maximum power handling of 30 Watts. Suitable for mounting with any minimum 16mm hole or bracket with appropriate 16mm hole.

ll black Super gain Telstra, Optus & Vodafone 4G, 3G & GSM mobile phone antenna, black - 825-960 & 1710-2190MHz, 5m cable, FME Female, 30W, 6.2 and 3dBi - 900mm with black spring

The NEW SGLDB-BLKR series of super gain with the stylish all black, light weight mobile phone antennas. The SGLDB-BLKR performance combined with our robust
tried and tested ZCG quality construction.

The SGLDB Series are identical in appearance to the SGL477 Series and SGL1100 Series.

Vehicle Mount
SGLDB-BLKR Series
Telstra, Optus & Vodafone 4G, 3G and GSM
Lightweight Mobile Phone/Wireless Data Improvement
Updated 7th April 2017

Specifications
SGLDB-BLKR
Colour All Black with Black Spring
Construction Black fi breglass radome, aluminium mount ferrule, parallel
spring and coaxial cable assembly
Frequency Range Telstra, Optus & Vodafone 4G, 3G and GSM
825-960MHz & 1710-2190MHz
Bandwidth Full band
VSWR <1.6:1 across full band
Tuning Factory
Gain 6.2 dBi (825-960MHz) and 3 dBi (1710-2190MHz)
Maximum Power 30 Watts
Impedance 50 Ohms
Polarisation Vertical
H Plane 360° omnidirectional
Cable 5 metres RG58 low loss (bottom exit from spring base)
Connector (fifi tted) FME female
Height 750mm
Weight 650grams
Mounting Accessories
(order seperate)
Bullbar: BBM-SS, BBML-SS or BBMXL-SS
Truck Mirror: MRM-SS
Bracket Mounting: GM1, GM2, GM4, GM6
Mounting Position
(recommended)
As high on your vehicle/structure as possible using a minimum
16mm hole or appropriate bracket with a 16mm hole
